RM-702 | 2 CH. REMOTE STATION RACK MOUNT: ENCORE TWO-CHANNEL 1RU REMOTE STATION RACK MOUNT WITH
RM-702
2 CH. REMOTE STATION RACK MOUNT: ENCORE TWO-CHANNEL 1RU REMOTE STATION RACK MOUNT WITH
Click image to enlarge
RM-702
2 CH. REMOTE STATION RACK MOUNT: ENCORE TWO-CHANNEL 1RU REMOTE STATION RACK MOUNT WITH
- UM : EA
- Estimated Weight: 2.1

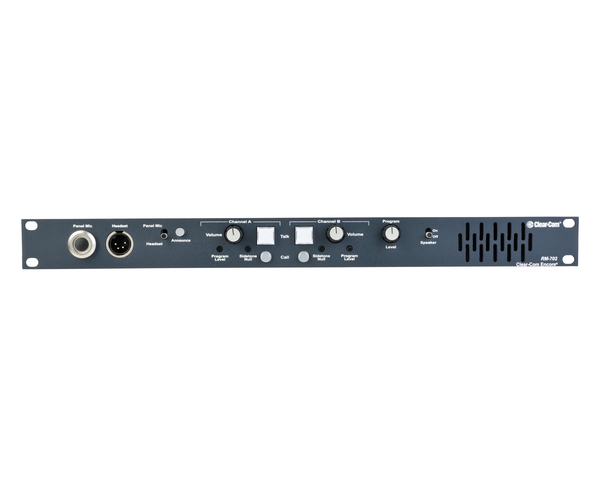

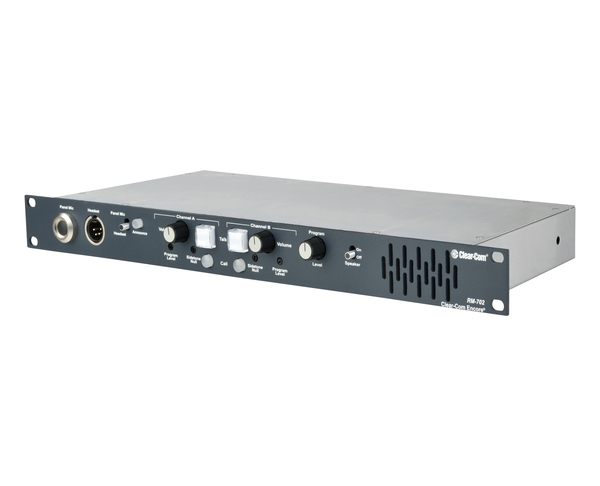

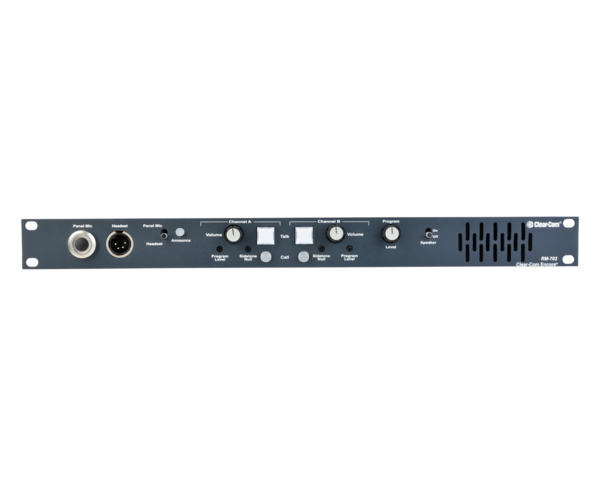

The RM-702 is a 1RU two-channel remote station featuring programmable front panel buttons and individual volume control for each channel. The unit is powered directly from the intercom line and does not require an external AC power source.
Features:
- Selectable one- or two-channel communication
- Momentary/latching talk buttons
- Individual call buttons
- Visual and audible call signaling
- Balanced audio input with program interrupt
- Hot mic and line-level outputs
- Stage announce output with relay
- Built-in speaker
| Input type | Electret |
|---|---|
| Input impedance | >= 2k |
| Mic limiter threshold | 0dbu ±3db |
| Mic limiter range | >= 20db |
| Maximum level before clipping | >= 20dbu |
| Load impedance | >= 8 |
| Output impedance | <= 25 |
| Output limiter threshold | +5dbu ± 3db |
| Maximum output level before distortion | >= 17dbu |
| Output noise | < -74dbu |
×
×
