RM-704 | 4 CH. REMOTE STATION RACK MOUNT: ENCORE FOUR-CHANNEL 2RU REMOTE STATION RACK MOUNT WITH INTERNAL
RM-704
4 CH. REMOTE STATION RACK MOUNT: ENCORE FOUR-CHANNEL 2RU REMOTE STATION RACK MOUNT WITH INTERNAL
Click image to enlarge
RM-704
4 CH. REMOTE STATION RACK MOUNT: ENCORE FOUR-CHANNEL 2RU REMOTE STATION RACK MOUNT WITH INTERNAL
- UM : EA

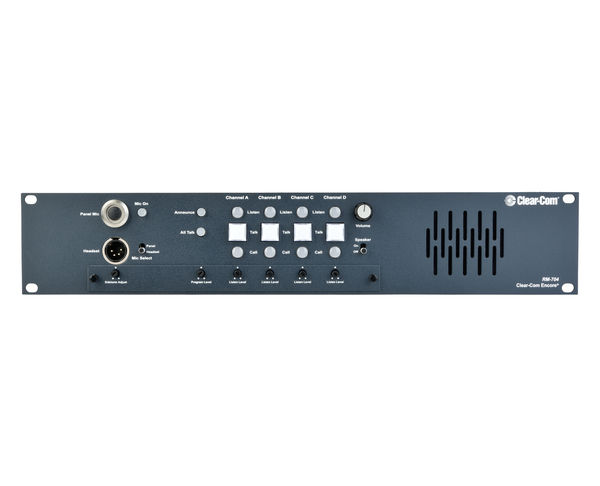

The RM-704 is a 2RU remote station featuring four individual audio channels. It includes programmable front panel buttons and separate volume controls for each channel. The unit is powered directly through the intercom line and does not require an external AC power source.
Features:
- Dual-action electronic Momentary/Latching Talk buttons
- Individual listen volume controls
- Visual and audible call signaling
- Balanced audio input with program interrupt
- External switchable line termination on each channel
- Microphone limiting
- Hot mic and line-level outputs
- Stage Announce with relay
- Built-in speaker
| Input Type | Electret |
|---|---|
| Input Impedance | >=2K |
| Mic Limiter Threshold | 0dBu ±3dB |
| Mic Limiter Range | >= 17dB |
| Maximum Level before Clipping | >= 20dBu |
| Output Limiter Threshold | +5dBu ± 3dB |
| Maximum Output Level before Distortion | >= 17dBu |
| Output Noise | < -74dBu |
| Crosstalk | < -60dB |
| Sidetone Null Capability | > 25dB |
×
×
