ROGUER1ESPOT | COMPACT & LIGHTWEIGHT MOVING YOKE SPOT FIXTURE, 200W LED, 2 GOBO WHEELS, 3-FACET PRISM WHEEL, FROST
ROGUER1ESPOT
COMPACT & LIGHTWEIGHT MOVING YOKE SPOT FIXTURE, 200W LED, 2 GOBO WHEELS, 3-FACET PRISM WHEEL, FROST
ROGUER1ESPOT
COMPACT & LIGHTWEIGHT MOVING YOKE SPOT FIXTURE, 200W LED, 2 GOBO WHEELS, 3-FACET PRISM WHEEL, FROST
- UM : EA
- Estimated Weight: 35.0

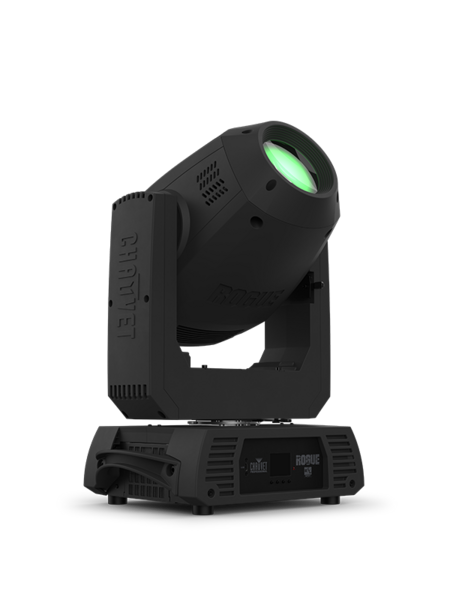

Rogue R1E Spot is a compact, lightweight moving yoke spot that delivers intense output from its 200W LED light engine and a fully featured wheelhouse: 3-facet rotating prism for stunning aerial effects; motorized iris and frost for beam shaping; dual gobo wheels (one rotating with interchangeable gobos + one static) for creating custom gobo morphing looks; and a color wheel with eight brilliant colors + white + split colors. Its 15° beam angle delivers crisp gobo projections and a selectable LED max output setting enables matching brightness with legacy Rogue R1X Spots in your rig.
Features:
- A fully featured compact and light weight moving yoke spot fixture with an Intense 200 W LED light engine, two gobo wheels, one rotating, and one static, a 3-facet prism wheel, frost, and a color wheels.
- 16-bit dimming of master dimmer for smooth control of fades
- Perfect gobo morphing between gobo wheels
- Two gobo wheels: one fixed scrolling wheel and one rotating, interchangeable, scrolling wheel.
- Iris, 3-facet prism, and frost for beam control
- True 1 compatible power input/output connections for power linking.
- 3- and 5-pin DMX input/output connections
- RDM enabled for remote addressing and trouble shooting.
- Selectable LED maximum output to match legacy Rogue R1X Spots
- Selectable PWM settings to maintain flicker-free operation on camera.
- Simple and complex DMX channel profiles for programming versatility
| Light Source | 1 LEDs (CW) 200 W, (3.2 A), 7423 K, 50,000 hours life expectancy |
|---|---|
| Color Temperature (at full) | 7423 K |
| Front lens diameter | 90mm |
| CRI | 68 |
| Beam Angle | 15.3° |
| Field Angle | 18.7° |
| Cutoff Angle | 20.3° |
| Lumens – Source | 17,900 |
| Lumens – Output | 12,210 |
| Illuminance (total) | 9,021 lux @ 5 m |
| Selectable PWM | 600 Hz, 1,200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 15,000 Hz |
| Pan and Tilt | 540°/270° |
| Pan and Tilt Ranges | 540°, 360°, 270° pan/270°, 180°, 90° tilt |
| Colors | 8 + white, split colors, continuous scroll at variable speeds |
| Gobos (1) | 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds |
| Gobos (2) | 8 + open (8 metal), continuous scroll at variable speeds |
| Gobo Size | Gobo Wheel 1 (rotating); size: 20 mm (outside), 16 mm (image), 0.6 mm (max. thickness) |
| Dimmer | Electronic |
| Shutter/Strobe | Electronic |
| Focus | Motorized |
| Iris | Motorized |
| Prism | 3 Facets, motorized, rotating |
| Strobe Rate | 0 to 22 Hz |
| Move in Black | Yes |
| Dimensions (single unit) | 14.01 x 9.44 x 20.47 in (356 x 240 x 520 mm)? |
| Weight (single unit) | 31.2 lb (14.2 kg) |
| Exterior Color | Black |
| Housing Material | Aluminum die-cast, High-impact flame-retardant polymer, Steel |
| Software update | USB-C |

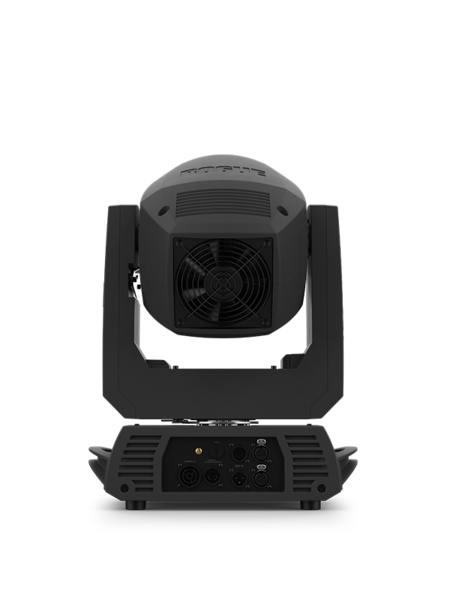

| Power Connection | Edison (local) plug to Neutrik powerCON |
| Power Input | Neutrik powerCON |
| Power Output | Neutrik powerCON |
| Data Connectors | 3- and 5-pin XLR |
| Cable Length (power) | 5 ft (1.5 m) |
| Control Protocol | DMX, RDM |
| DMX Channels | 16 or 19 |
| Modes/Personalities | 2 personalities (16, 19) |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power Linking | 4 units @ 120 V; 8 units @ 208 V; 8units @ 230 V |
| Power and Current | 315 W, 2.63 A @ 120 V, 60 Hz |
| Power and Current | 306 W, 1.50 A @ 208 V, 60 |
| Power and Current | 303 W, 1.36 A @ 230 V, 50 Hz |
| IP Rating | IP20, dry location |
| Professional Clamps | CTC-50HC, CTC-50HCN |
