RS-701 | SINGLE-CHANNEL STANDARD BELTPACK, FOUR-PIN MALE HEADSET CONNECTOR
RS-701
SINGLE-CHANNEL STANDARD BELTPACK, FOUR-PIN MALE HEADSET CONNECTOR
Click image to enlarge
RS-701
SINGLE-CHANNEL STANDARD BELTPACK, FOUR-PIN MALE HEADSET CONNECTOR
- UM : EA
- Estimated Weight: 3.0

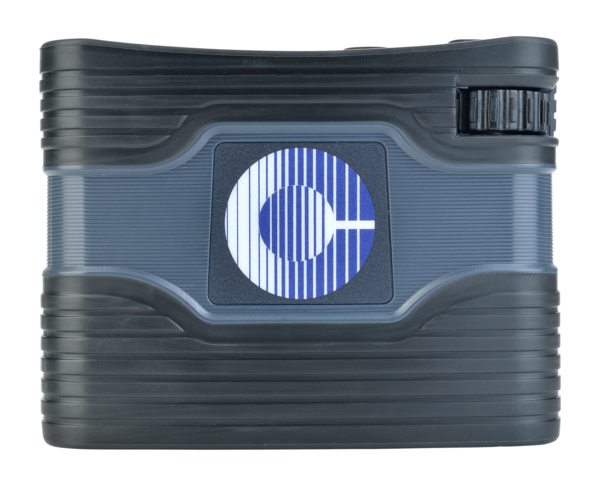

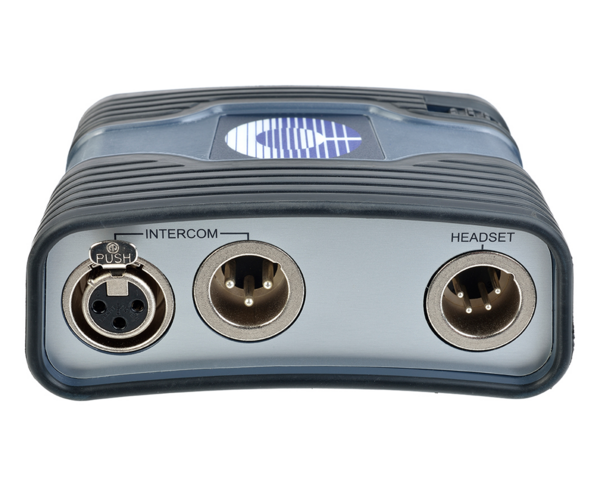

The RS-701 is a single-channel analog beltpack designed to transmit power and audio via an XLR-3 line connector. It features high headroom, low-noise audio performance, and a shaped frequency contour to optimize audio clarity.
Power requirements for analog partyline systems using the RS-701 can be estimated using the Encore Power Supply Calculator.
Features:

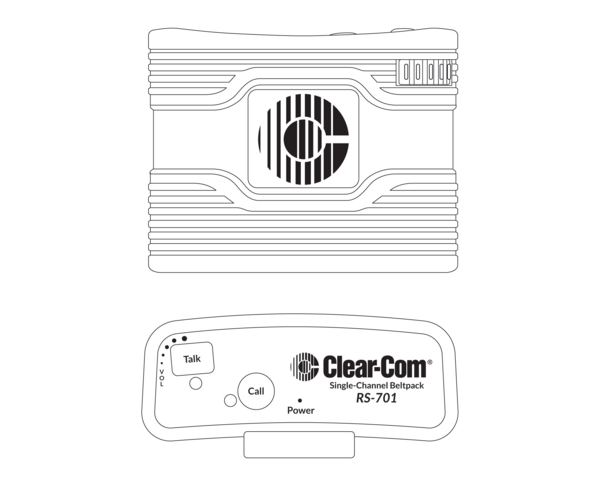

- Visual LED indicators on keypad
- Tactile Call and Talk buttons
- Recessed rotary volume controls with end stops
- Programmable DIP switches for Talk and Call functions
- Adjustable LEDs, Mic Gain, Mic Type, and Headphone Level
- Compatible with Clear-Com analog partyline systems
- Low operating current for beltpack daisy-chaining
- Rugged construction
| Frequency Response | 280 – 15kHz ± 3dB |
|---|---|
| Microphone output to line – Audio Level | -9dBm |
| Microphone output to line – Distortion | <0.1% |
| Microphone output to line – Signal to Noise | >65dB |
| Frequency Response – Line to Headphone | 150 – 20kHz ± 3dB |
| Headphone input from line – Audio Level | 3.5dBm |
| Headphone input from line – Distortion | <0.5% |
| Headphone input from line – Signal to Noise | >50dB |
| Earphone to Mic – Crosstalk | >80dB |
| Sidetone – Adjustment Range | >45dB |
