RS-703 | 2 CH. TW DUAL LISTEN MONAURAL BELTPACK: ENCORE TWO-CHANNEL/THREE-PIN DUAL LISTEN MONAURAL BELTPACK
RS-703
2 CH. TW DUAL LISTEN MONAURAL BELTPACK: ENCORE TWO-CHANNEL/THREE-PIN DUAL LISTEN MONAURAL BELTPACK
RS-703
2 CH. TW DUAL LISTEN MONAURAL BELTPACK: ENCORE TWO-CHANNEL/THREE-PIN DUAL LISTEN MONAURAL BELTPACK
- UM : EA
- Estimated Weight: 1.0

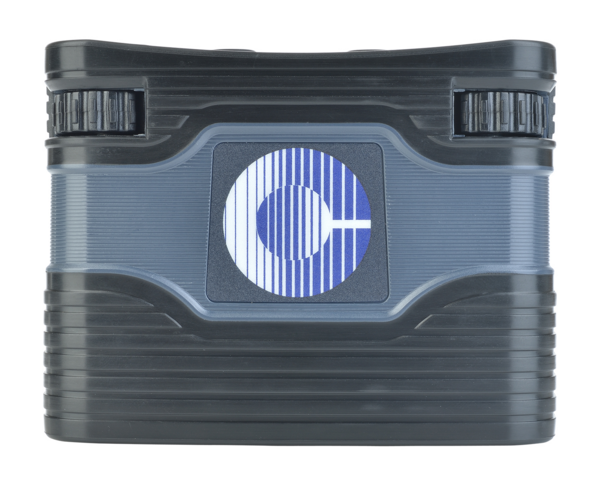

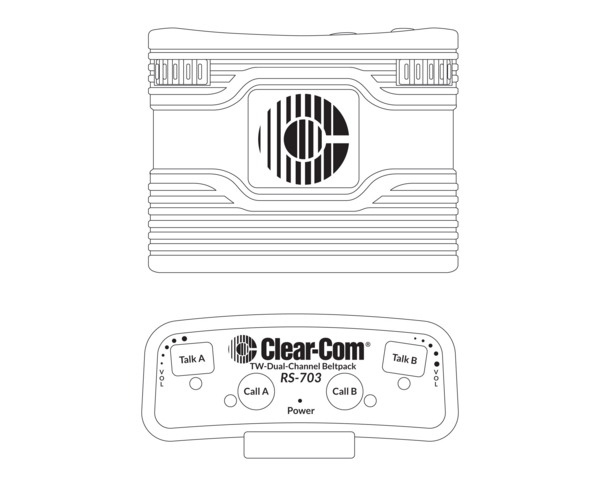

The RS-703 is a two-channel analog beltpack designed to transmit power and audio signals via an XLR-3 line connector. It features high headroom and low-noise audio performance with a shaped frequency contour.
For power requirement calculations in analog partyline systems, refer to the Encore Power Supply Calculator.
Features:
- Visual led indicators on keypad
- Tactile call and talk buttons
- Recessed rotary volume controls with end stops
- Concealed programmable dip switches
- Xlr-3 line connectors with 2-channel tw connectivity
- 3.5mm program audio input jack
- Rts-tw compatible
- Compatible with clear-com analog systems via twc-703 adapter
- Low operating current for beltpack daisy-chaining
- Rugged construction
| Frequency response | 280 – 15k hz ± 3db |
|---|---|
| Microphone output to line – audio level (-50dbm electret input) | -9dbm |
| Microphone output to line –distortion | <0.1% |
| Microphone output to line –signal to noise | >65db |
| Frequency response – line to headphone | 150 – 20khz ± 3db |
| Headphone input from line – audio level (-9dbm electret input) | 7dbm |
| Headphone input from line –distortion | <0.5% |
| Headphone input from line – signal to noise | >50db |
| Earphone to mic – crosstalk | >80db |
