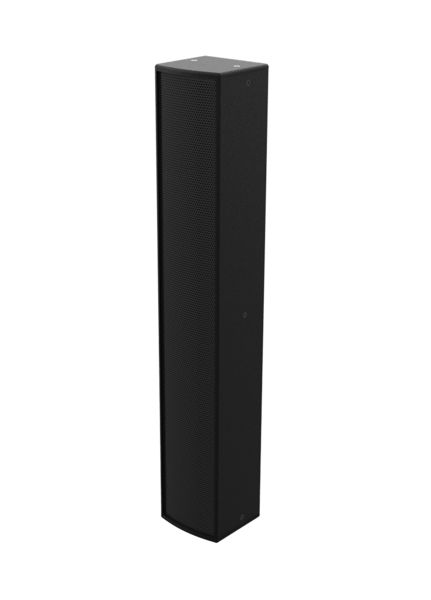

SBH10 | 140 X 10 DEGREE, 8 X 5" COAXIAL HIGH PERFORMANCE COLUMN STYLE SPEAKER
SBH10
140 X 10 DEGREE, 8 X 5" COAXIAL HIGH PERFORMANCE COLUMN STYLE SPEAKER
SBH10
140 X 10 DEGREE, 8 X 5" COAXIAL HIGH PERFORMANCE COLUMN STYLE SPEAKER
- UM : EA
- Estimated Weight: 100.0
The SBH10 is a loudspeaker featuring Danley’s patented Paraline technology, incorporating a large horn with an effective path length exceeding 25 feet. This design provides controlled directional sound dispersion without spurious lobes or the need for additional signal processing.
The SBH10 is designed for use in environments requiring clear speech intelligibility, such as reverberant spaces including houses of worship, public assembly halls, transportation hubs, stadiums, arenas, and retail kiosks.
| Coverage pattern | 140° horizontal |
|---|---|
| Operating frequency range | 77 Hz – 15 kHz ± 3 dB |
| Continuous output | 127 dB SPL |
| Peak output | 133 dB SPL |
| Sensitivity | 99 dB SPL at 10M, 28.3V input |
| Driver complement | 8 x 5” coaxial drivers |
| Rated impedance | 4ohms |
| Power rating | 1300W continuous |
