SM81-LC | CARDIOID CONDENSER WITH 10DB ATTENUATOR AND 3 POSITION LOW-CUT FILTER, WITH FOAM WINDSCREEN

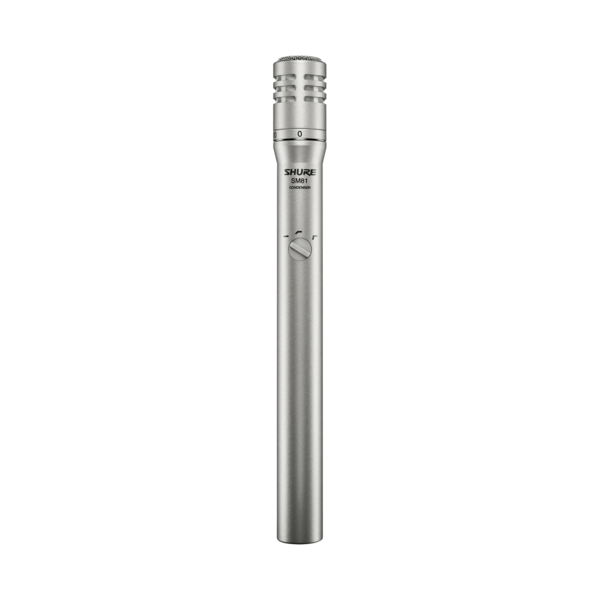

SM81-LC
CARDIOID CONDENSER WITH 10DB ATTENUATOR AND 3 POSITION LOW-CUT FILTER, WITH FOAM WINDSCREEN
Click image to enlarge
SM81-LC
CARDIOID CONDENSER WITH 10DB ATTENUATOR AND 3 POSITION LOW-CUT FILTER, WITH FOAM WINDSCREEN
- UM : EA
- Estimated Weight: 1.0
The SM81 is ruggedly constructed. It operates on phantom power and performs over a wide range of temperatures and humidity conditions. It is furnished with a swivel adapter, attenuator-switch lock, foam windscreen, and case for carrying and storage. Other accessories are available.
Features:
- 20 Hz to 20 kHz frequency response
- Flat response curve for accurate reproduction of sound sources
- Low noise and high output clipping level
- Low distortion over a wide range of load impedances
- Cardioid polar pattern, uniform with frequency and symmetric about axis, providing maximum rejection and minimum coloration of off-axis sounds
- Low RF susceptibility
- Selectable low-frequency response: flat, 6 or 18 dB/octave rolloff
- 0 dB/10 dB lockable attenuator switch
- Phantom powering (DIN 45 596 voltages of 12 to 48 Vdc)
- Rugged steel construction for durability
- Field-usable over wide range of temperature and humidity conditions
| Transducer Type | Condenser |
|---|---|
| Polar Pattern | Cardioid |
| Frequency Range From (Hz) | 20 |
| Frequency Range To (kHz) | 20 |
| Sensitivity dBV/Pa | -45.00 |
| Sensitivity mvpa | 5.60 |
| Equivalent Selfnoise | 16 dB(A) |
| Maximum Sound Pressure (800 ohm load) | 136 dB (attenuator at 0) 146 dB (attenuator at -10) |
| Maximum Sound Pressure (150 ohm load) | 128 dB (attenuator at 0) 138 dB (attenuator at -10) |
| Impedance (Ω) | 85 |
×
