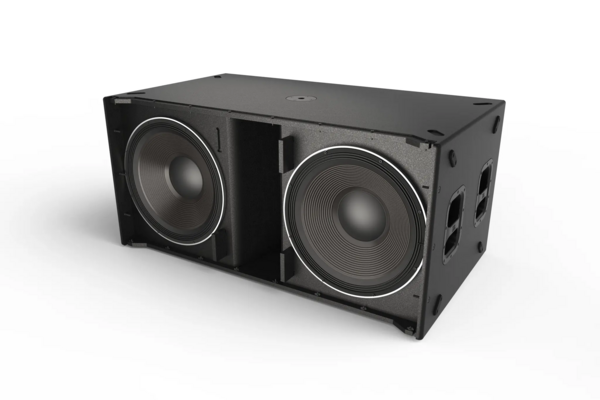

SRX928S | DUAL 18IN POWERED SUBWOOFER, 1100W CONT, OMNIDIRECTIONAL OR CARDIOID

JBL SRX928S is a dual 18-inch powered subwoofer designed to provide high-output low-frequency reinforcement for JBL SRX900 professional sound systems. Built-in Class-D amplification and DSP make it a strong system-building choice for rental, touring, live production and fixed-install applications where substantial bass output is required without a separate amplifier rack.

The SRX928S uses two JBL 18-inch Differential Drive woofers and extends down to 31 Hz, delivering the low-frequency impact required for live music, DJs, entertainment venues and larger sound reinforcement systems. Selectable omnidirectional or cardioid operating configurations help integrators and production companies manage low-frequency coverage based on the deployment.

Dual Ethernet connections, HARMAN HControl support, onboard DSP and JBL Performance software integration allow the SRX928S to operate as part of a coordinated SRX900 system alongside powered line-array elements and other SRX900 components.

Note: The SRX928S is the large dual-18 ground-oriented powered subwoofer in the SRX900 family, while JBL's SRX915SF and SRX918SF provide flyable subwoofer options for array configurations.

• High-density system in truck-pack format
• High-power transducers with low distortion and high fidelity
• Passively cooled Class D amplification with universal power supply
• Dual Ethernet ports with Neutrik etherCON connectors
• Supports HARMAN HControl Ethernet
• User-controllable DSP
• LevelMax limiting with excursion-control algorithms
• Rear-panel LCD for control access
• Reinforced 18mm plywood enclosures

Frequency Range	31 Hz - 100 Hz
Coverage Pattern	Omnidirectional or Cardioid
Maximum SPL	140 dB
System Type	Powered Subwoofer
Amplifier Design	Class-D
Continuous Power Rating	1100 W
LF Driver	(2) JBL 2279H-1, 18 in diameter, 8 ohms, dual 3.0 in diameter voice coil, ferrite Differential Drive
Enclosure	Plywood, Black DuraFlex finish, four integral recessed handles
