SW5E | 5-PORT AVB SWITCH WITH POE (5 AVB ETHERCON JACKS / 4 PORTS WITH POE)
SW5E

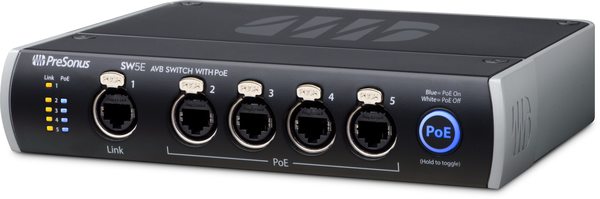

5-PORT AVB SWITCH WITH POE (5 AVB ETHERCON JACKS / 4 PORTS WITH POE)
SW5E
5-PORT AVB SWITCH WITH POE (5 AVB ETHERCON JACKS / 4 PORTS WITH POE)
- UM : EA
- Estimated Weight: 6.7
An AVB network relies on an intelligent AVB switch to analyze network traffic and ensure that critical audio data is prioritized when connecting more than two devices. This guarantees the low-latency, high-quality audio performance for which AVB is known. The PreSonus SW5E AVB switch fully complies to the AVB standard while providing Power over Ethernet (PoE) to devices that can take advantage of it, like the PreSonus EarMix 16M.
Features
Ports and Indicators
5 Locking XLR Ethernet AVB jacks
4 ports with PoE
PoE power indicators
Network Link/Activity indicators
Switches and Power
PoE power on/off

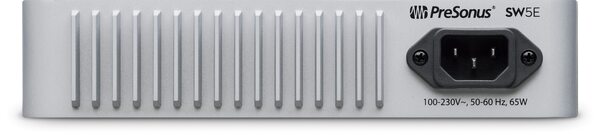

Internal power supply with IEC connector
?Physical
Rugged metal chassis
Rack mountable (screws to a rack tray)
|
General |
|
|
AVB Ports |
5 Locking XLR Ethernet |
|
PoE Ports |
4 |
|
PoE Supported |
IEEE 802.3at-2009 (Type 1) |
|
Operational Bandwidth |
10 / 100 / 1 Gigabit |
|
Front Panel |
5 Activity LEDs, 4 PoE active LEDs |
|
Power |
100-230V, 50-60 Hz, 65W |
|
Dimensions |
1.7" x 8.5" x 7" (44 x 217 x 178 mm) |
