TW-47
2-WAY RADIO INTERFACE:  CLEAR-COM/RTS TWO-WAY RADIO INTERFACE CONNECTS CLEAR-COM OR RTS TO MOST

  • UM : EA

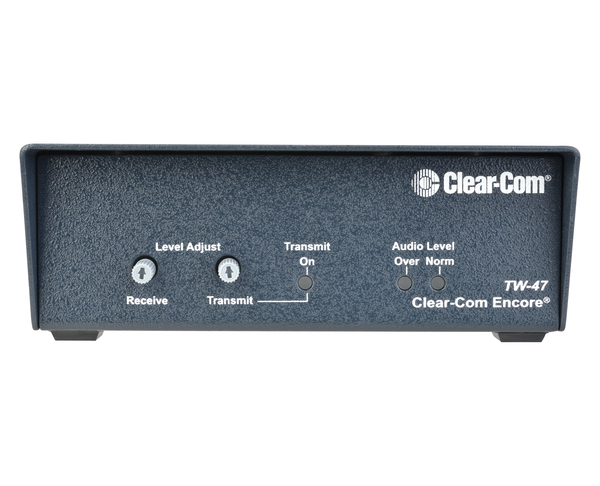

The TW-47 is a stand-alone interface that connects a two-way tuner or walkie-talkie to a single channel of a Clear-Com, RTS, or compatible two-wire party-line intercom system. It facilitates both audio transmission and push-to-talk transmitter keying, utilizing standard Call signaling.

Note: For power requirement calculations in analog party-line systems, refer to the Encore Power Supply Calculator.

Features:

  • Interfaces 2-way tuner to clear-com, rts, or compatible system
  • Accepts walkie-talkie or tuner with headset and microphone jacks
  • Individual transmit and receive level controls
  • Bi-color led audio level indicator
  • Powered by the intercom line
Frequency response200-20khz ± 3db
Max gain>=-5dbu
Distortion<=0.3%
Noise<=-70dbu
Max level before clipping>=+17dbu
Green led threshold-22dbu ± 3db
Red led threshold-16dbu ± 3db
Input impedance400ω ± 100ω
Input voltage range20-30v dc
Quiescent current<=40ma
