UA844+V/LC | 5-WAY ANTENNA DISTRIBUTION SYSTEM 174-216 MHZ (WITHOUT CABLES) FOR VHF QLXD & ULXD RECEIVERS

  • MAP: $534.00 / EA
  • List Price: $748.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 2
  • Usually ships in 3-7 days
5-WAY ANTENNA DISTRIBUTION SYSTEM 174-216 MHZ (WITHOUT CABLES) FOR VHF QLXD & ULXD RECEIVERS
Click image to enlarge

UA844+V/LC
5-WAY ANTENNA DISTRIBUTION SYSTEM 174-216 MHZ (WITHOUT CABLES) FOR VHF QLXD & ULXD RECEIVERS

  • UM : EA
  • Estimated Weight: 0.4

Description:

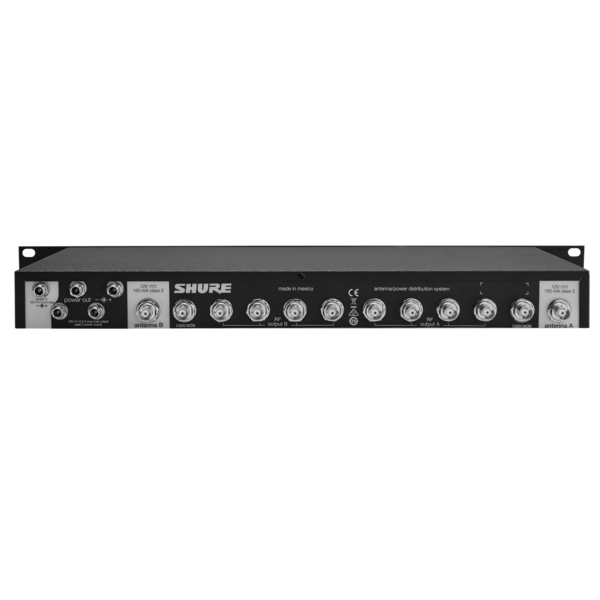

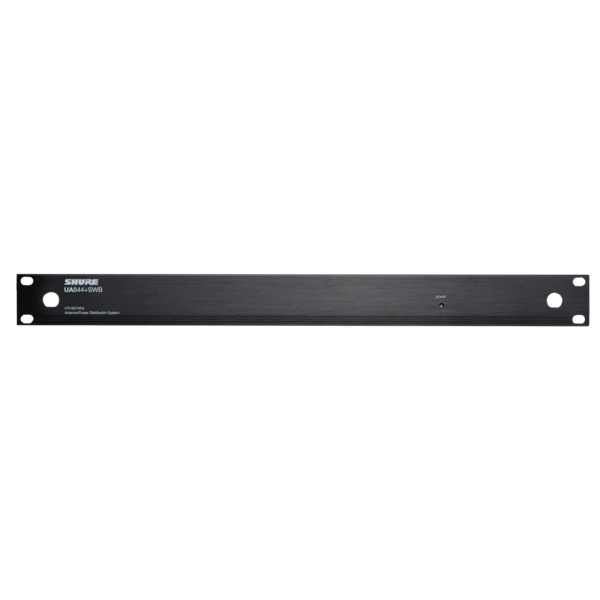

The Shure Model UA844+V is an antenna distribution system that allows for the expansion of wireless microphone systems by splitting one pair of antennas to multiple receivers. It also amplifies RF signals to compensate for insertion loss that results from splitting signal power to multiple outputs. A single UA844+V system can support up to five wireless receivers. A maximum of five UA844+V systems may be used in a two-tiered configuration.



Features:

•         Five-way RF signal output

•         Supports VHF QLX-D® (coming soon) and ULX-D® (available now) receivers

•         Front-mounting antenna hardware

•         Rack-mounting hardware

•         4 DC power feeds and for receivers (15V, 2.5A max)

•         DC outputs for antenna bias (12V, 300mA max)
