ULXD4QGV=-G57 | QUAD-CHANNEL DIGITAL WIDE BAND WIRELESS RECEIVER GOVERNMENT VERSION (470-608MHZ)
ULXD4QGV=-G57
QUAD-CHANNEL DIGITAL WIDE BAND WIRELESS RECEIVER GOVERNMENT VERSION (470-608MHZ)
Click image to enlarge
ULXD4QGV=-G57
QUAD-CHANNEL DIGITAL WIDE BAND WIRELESS RECEIVER GOVERNMENT VERSION (470-608MHZ)
- UM : EA

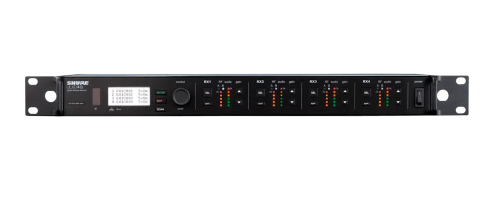

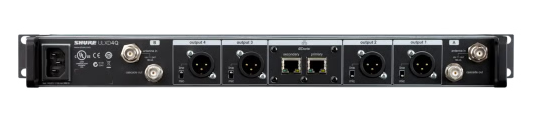

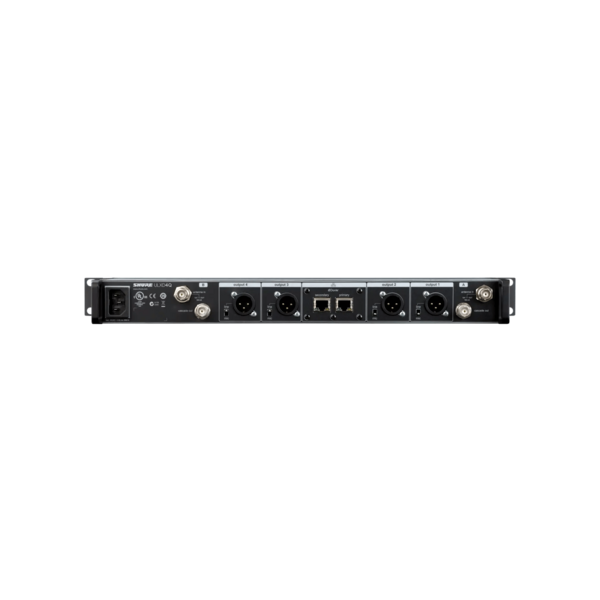

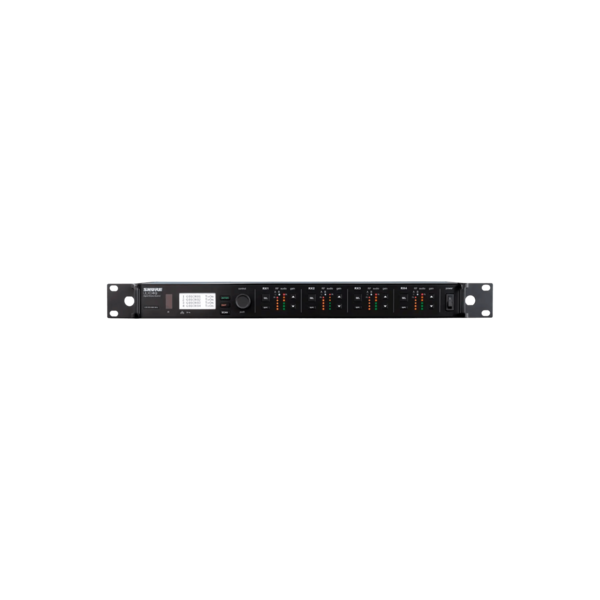

The Shure ULXD4Q-GV is a quad-channel networkable wireless receiver for use with ULX-D Digital Wireless Systems.
Now featuring wide-tuning frequency bands, offering an expanded range of up to 166 MHz,( region dependent). With 24-bit / 48 kHz digital audio for pristine sound quality, efficient RF transmission for maximum channel capacity in crowded spectrum, and always-on AES-256 encryption to protect confidential content, ULX-D delivers uncompromising wireless for the most demanding environments.
Features:
- Four receivers in a rugged 1RU metal chassis with internal power supply
- Dante digital networked audio over Ethernet
- Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
- Individual gain controls, LED meters, and XLR outputs for each channel
- Expanded tuning range (up to 166 MHz, region dependent)
- Digital predictive switching diversity
- High Density mode allows higher channel counts at distances up to 100 ft / 30 m
- Optimized scanning finds, prioritizes, and deploys the cleanest frequencies to transmitters over IR sync
- Always-on AES-256 encryption for enhanced privacy in confidential settings
- Ethernet networking provides streamlined setup across multiple receivers, Wireless Workbench integration, and AMX/Crestron control
- Yamaha device ID allows simplified channel patching on CL consoles ("YAMAHA" is a registered trademark of Yamaha Corporation)
- Remote-mountable ½ wave antennas included
| Bias Via BNC | yes |
|---|---|
| Frequency Diversity | yes |
| DANTE Audio Network Interface | yes |
| Detachable Antennas | yes |
| Network Ability | DHCP, link-local, static |
| Software Control | SystemOn, ShurePlus™ Channels, Wireless Workbench, Shure Update Utility |
| Antenna Cascade | yes |
| Rack Mount Accessories | Integrated, Not needed |
| Receiver Types | quad |
| Antenna Type | External 1/2 wave |
| Line/Mic Switch | yes |
| Phantom Power Protection | yes |
×
×
