VRX932LA-1 | 12" 2-WAY PASSIVE LINE-ARRAY SYSTEM;1 X 2262H DIFFERENTIAL DRIVE LF;3 X 2408J ANNULAR RING DIAPHRAGM

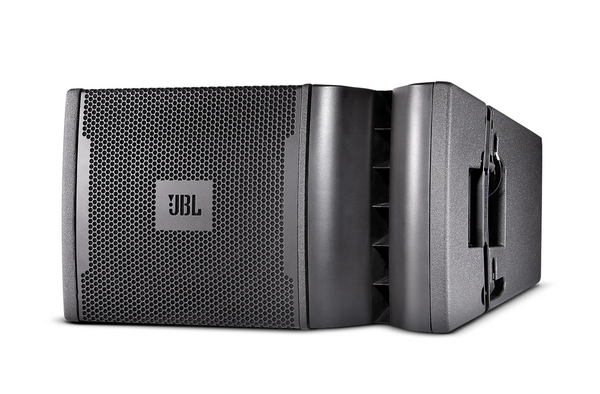

The VRX932LA-1 is a two-way line array loudspeaker system featuring a 12-inch driver. It has a compact and lightweight design, weighing 46 pounds (21 kilograms). The system is engineered for deployment in arrays consisting of up to six units, providing scalable sound reinforcement configurations.

• JBL neodymium magnet Differential Drive woofer for high power and light weight
• 3 x 2408J Annular Ring Diaphragm HF drivers
• Constant Curvature waveguide for array coherence
• Dual angle pole socket for aiming flexibility
• Integral rigging hardware for connecting enclosures and array frames
• Array Configuration Selector for array shading in passive mode

Power Rating	800 W / 1600 W / 3200 W
Frequency Range	57 Hz - 20 kHz
Frequency Response	75 Hz - 20 kHz
Coverage Pattern	100 x 15 nominal
Crossover Modes	Bi-amp / passive, externally switchable
Maximum SPL (1m)	130 dB SPL peak (passive mode); LF: 130 dB; HF: 139 dB
Sensitivity	Passive: 95 dB SPL; Bi-amp LF: 95 dB SPL; Bi-amp HF: 114 dB SPL
LF Driver	1 x JBL 2262H 12 in Differential Drive woofer with neodymium magnet, dual voice-coils, dual magnetic gaps
HF Driver	3 x JBL 2408J 1.5 in voice-coil neodymium compression driver
Nominal Impedance	Passive = 8 ohm; Bi-amp LF = 8 ohm; Bi-amp HF = 8 ohm
