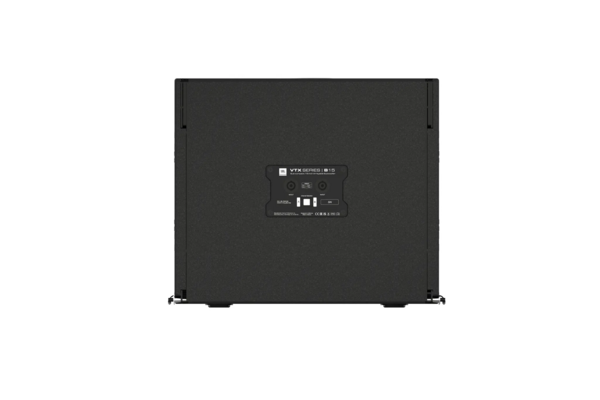

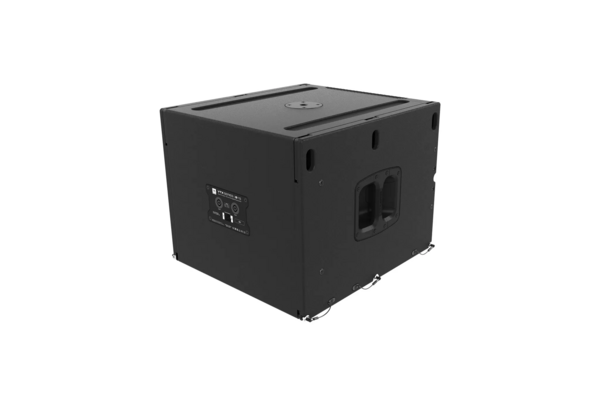

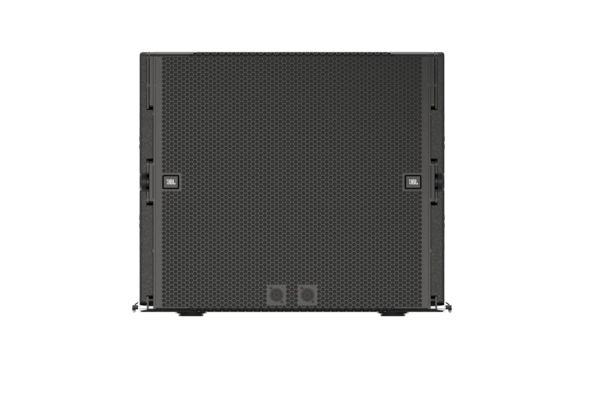

VTX B15 | SUB-COMPACT ARRAYABLE 15-INCH SUBWOOFER
VTX B15
SUB-COMPACT ARRAYABLE 15-INCH SUBWOOFER
VTX B15
SUB-COMPACT ARRAYABLE 15-INCH SUBWOOFER
- UM : EA
The VTX B15 is a compact 15-inch subwoofer designed to complement VTX full-range sound-reinforcement systems, including the VTX A6 Subcompact Dual 6.5-inch Line Array Element. It features SlipStream double-flared exponential ports and a Differential Drive dual-voice coil woofer design to enhance low-frequency performance. The B15 shares the same width and suspension hardware as the A6, enabling combined flown and ground-stacked configurations.
This subwoofer is intended for use in various applications such as production, touring, rental, theater, and houses of worship where space is limited. The VTX B15 supports small to midsize sound reinforcement needs or can supplement larger VTX systems by delivering extended low-end performance within a compact footprint.
| Frequency Range | 35 Hz-95 Hz |
|---|---|
| Coverage Pattern | Omnidirectional or Cardioid |
| Maximum SPL | 132 dB |
| System Processing | Crown iTech 9000HD, iTech 12000HD, iTech 4x3500HD |
| Nominal Impedance | 8ohms |

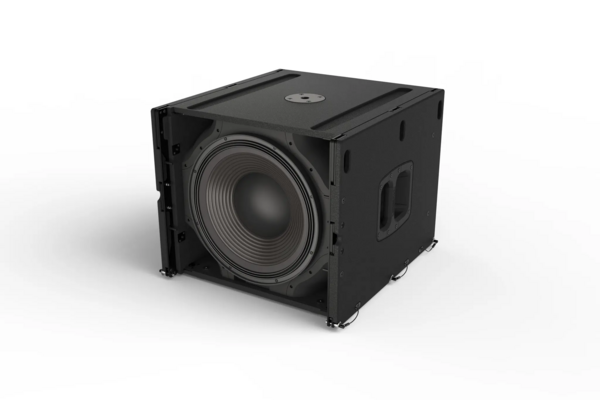

| LF Driver | (1) JBL 2285H, 15 in diameter, dual 4 in voice coil, neodymium Differential Drive |
| Enclosure | Exterior grade birch plywood with black DuraFlex finish and recessed handles |
