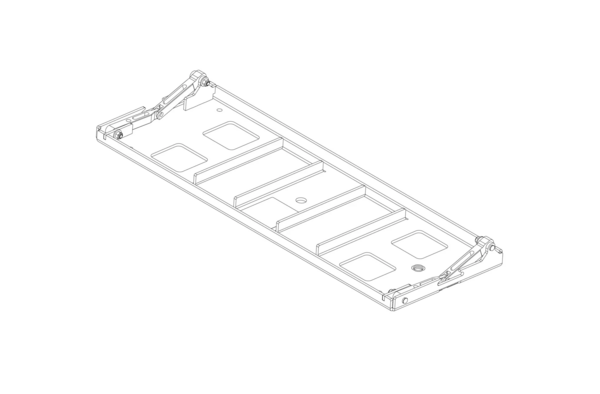

VTX-V20 BP | BASE PLATE FOR VTX V20

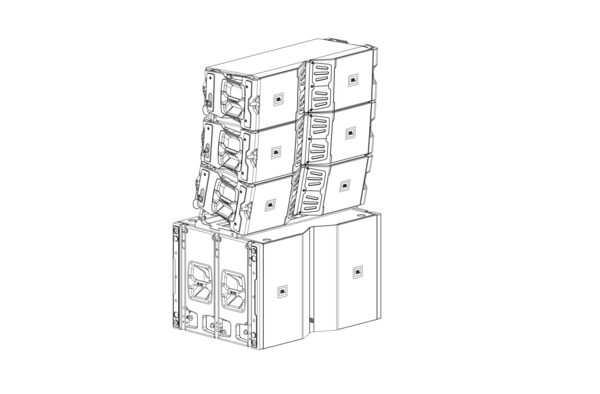

The VTX V20 Base Plate is a universal adapter frame that enables VTX V20 arrays to be ground stacked on top of compatible subwoofers or support structures such as stages, scaffolding, or carts. Using the included M20 screw, the VTX V20 BP connects to any supported subwoofer equipped with a standard M20 pole mount adapter, such as the VTX B28 or the VTX S25. The base plate attaches directly to the bottom of a V20 array, and angles are set by the V20 connected to the base plate. When not used with subwoofers, M10 through holes at the four corners can be used to permanently attach a V20 array to other support structures.

Features:

• Enables ground stacking VTX V20 arrays
• Allows attaching VTX V20 cabinets to subwoofers
• Universal M20 threaded pole mount
• Array angles selectable between -15 degrees and -2.5 degrees
• Lightweight design
• Support for up to (6) VTX V20
