VTX-V25-AF-EB | VTX V25 ARRAY FRAME EXTENSION BAR FOR USE WITH VTX-V25-AF, FRONT- OR REAR-MOUNTED. SINGLE (CENTRAL)

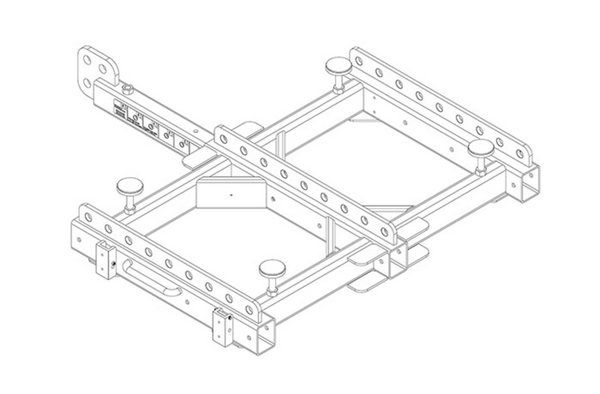

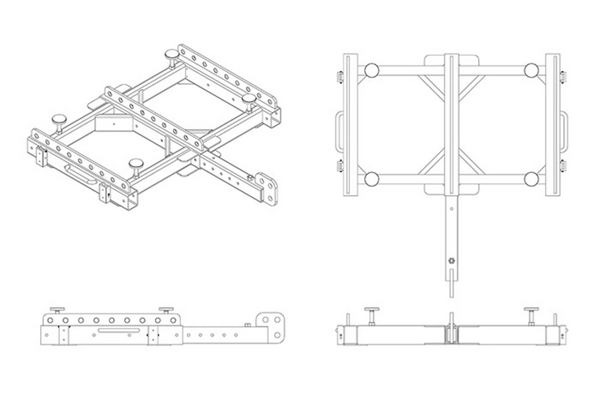

The VTX-V25-AF-EB extension bar is an accessory designed for use with the VTX-V25-AF array frame to deploy VTX V25 series systems in either compression or tension suspension modes. It offers five attachment positions, enabling variable pick point separation for two-point suspension and providing flexibility for single-point suspension. The extension bar can be mounted on the front or rear of the array frame, allowing for increased array up-tilt or down-tilt, respectively. When rear-mounted, it serves as an attachment point for compression suspension. Installation options include a single extension bar in the central tube or a pair of bars on the left and right tubes, either front- or rear-mounted. In ground stack configurations, one or two extension bars can be used front- or rear-mounted to enhance stability and provide a wider range of tilt angles. Dual bars mounted front and rear support compression suspension with increased up-tilt.

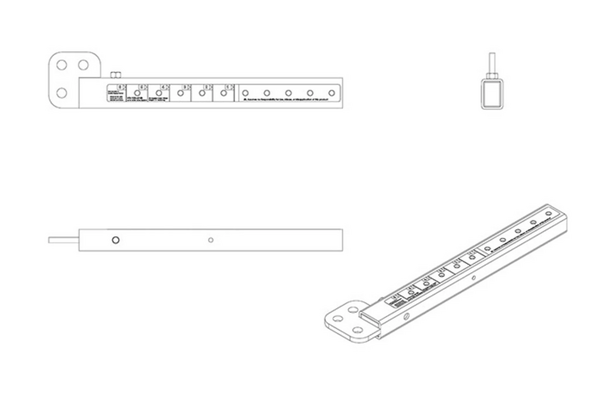

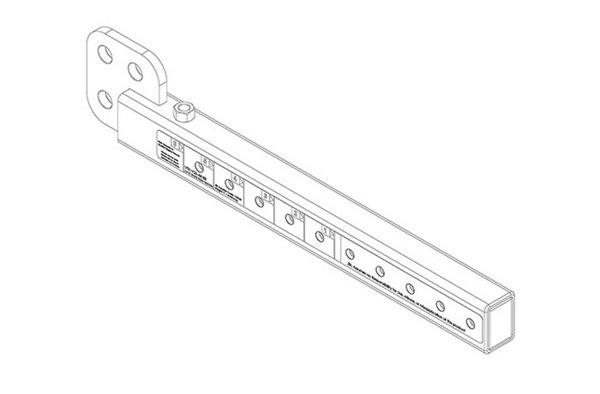

The extension bar is compatible with the VTX-V25-AF and supports up to 24 cabinet units depending on array geometry. It provides two pick points for single-point suspension and one pick point for attachment of the VTX-V25-LH level hoist. Compatible pick point shackle sizes are 5/8" or 3/4". The product package includes one extension bar, a height-adjustable leveling foot for ground stack applications, and two quick release pins for securing the bar to the array frame.
