100LVC-PA-DW | ATTENUATOR-PRIORITY-100W, 70V/25V, 1-GANG DECORATOR, WHITE

  • MAP: $89.58 / EA
  • List Price: $101.80 / EA
  • Log in to see if custom discounts apply
  • Minimum Order Quantity: 2
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
ATTENUATOR-PRIORITY-100W, 70V/25V, 1-GANG DECORATOR, WHITE

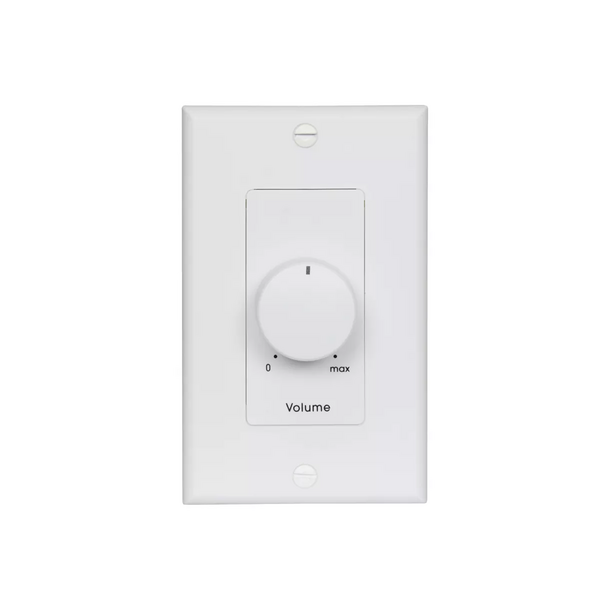

Click image to enlarge

100LVC-PA-DW
ATTENUATOR-PRIORITY-100W, 70V/25V, 1-GANG DECORATOR, WHITE

  • UM : EA
  • Estimated Weight: 1.0

Mono autoformer attenuator volume control with rotary switch is for use with 25V/70V speaker line. This volume control features Phoenix style plug-in screw termination strips, 100W power rating, 3dB per step attenuation and a priority relay for emergency bypass. Includes one-gang decorator style white wall plate.

  • Power Rating:  100W
  • Attenuation:  3dB per step (33dB total)
  • Use With:  25V/70V speaker line
  • Activation:  Rotary dial
  • Volume Positions:  0-10
  • Termination:  Phoenix-style
  • Wire Capacity:  14-gauge
  • Wall Plate:  1-gang decorator
  • Finish:  White
  • Fits standard E.O. box (2.125 in. min. depth)
  • Priority Relay: 24VDC@15mA relay for emergency signal bypass
