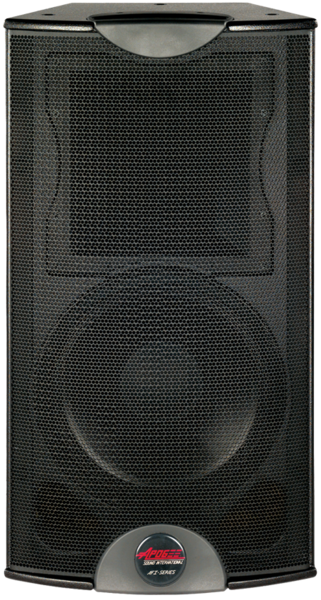

106-0400 | AFI-4 (PASSIVE) W/ GAS-TIGHT BARRIER STRIP

The AFI-4 is a fully arrayable loudspeaker versatile enough for clubs, discos, churches, theaters, and theme parks. Much of this versatility comes from the available options that include a 60° x 45° or 90° x 45° horn as well as bi-amplification capabilities. These horns, as well as their logo plate, are rotatable to allow alternative hanging positions.

Features:

• Input Connectors: Barrier strip, screw type #8
• Compatible Processors: AFI Main Frame Controller Chassis (using either AFI-4/-4B/-4W/- 4WB Modules) or DLC24
• Recommended Crossover (AFI-4B only): Contact Apogee for full technical data on other DSP-based Processors
• Handles: Two handles – one top, one bottom – designed as an integral part of the enclosure (no moving parts)
• Grille: Highly durable, quality finish on perforated steel (aluminum on SX version)
• Rigging Hardware: Fourteen rigging points, four each on top and bottom, two each on both sides and rear, all backed with 16-gauge steel; points can be type 3/8"-16 or M10 thread
• Finish: Textured high-strength black or white epoxy paint; other colors optional
• Enclosure Type: 30° trapezoidal, optimally-vented bass
• Cabinet Construction: Multi-ply hardwood
• Options/Accessories: AFI Controller Processor or DLC24 Digital Processor; SX weather treatment for use in limited exposure enclosures; assorted rigging components
