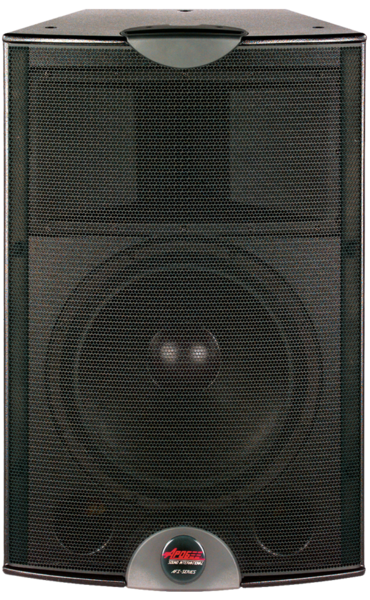

106-0800 | APOGEE AFI-8 FIXED INSTALLATION (PASSIVE) W/ GAS-TIGHT BARRIER STRIP

The AFI-8 is a fully arrayable loudspeaker capable of filling large churches, theaters, sports venues, and theme parks with clean, articulate full bandwidth sound. Available with a 60° x 40° or 90° x 40° high-frequency horn pattern insuring that the AFI-8 works flawlessly in any room configuration. A bi-amplified version is also available.

Features:

• Driver Complement: Low-Frequency: One Apogee 15"(381mm) neodymium magnet cone-type driver is treated with a waterproofing compound, providing resistance to moisture, and enabling long-term stability of cone resonance and cone mass parameters; also treated with Ferrofluid for greater power handling capability, lower distortion, and control of short-term impedance rise High-Frequency: One Apogee 3" (76mm) voice coil, 2" (51mm) exit horn-loaded compression driver treated with Ferrofluid for greater power handling capability, lower distortion, and control of short term impedance rise
• Input Connectors: Barrier strip, screw type #8
• Compatible Processors: AFI Main Frame Controller Chassis (using either AFI-8/-8B/-8W/- 8WB Modules) or DLC24
• Recommended Crossover (AFI-8B only): Contact Apogee for full technical data on other DSP-based Processors
• Handles: Two handles – one top, one bottom – designed as an integral part of the enclosure (no moving parts)
• baffle: Highly durable, quality finish on perforated steel (aluminum on SX version)
• Rigging Hardware: Fourteen rigging points, four each on top and bottom, two each on both sides and rear, all backed with 16-gauge steel; points can be type 3/8"-16 or M10 thread
• Finish: Textured high-strength white epoxy paint
• Enclosure Type: 30° trapezoidal, optimally-vented bass
• Cabinet Construction: Multi-ply hardwood
• Options/Accessories: AFI Controller Processor or DLC24 Digital Processor; SX weather treatment for use in limited exposure enclosures ; assorted rigging components
