10KLVC-DA | ATTENUATOR-10K OHM POTENTIOMETER, 1-GANG DECORATOR, ALMOND

  • MAP: $65.65 / EA
  • List Price: $74.60 / EA
  • Log in to see if custom discounts apply
  • Minimum Order Quantity: 2
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times

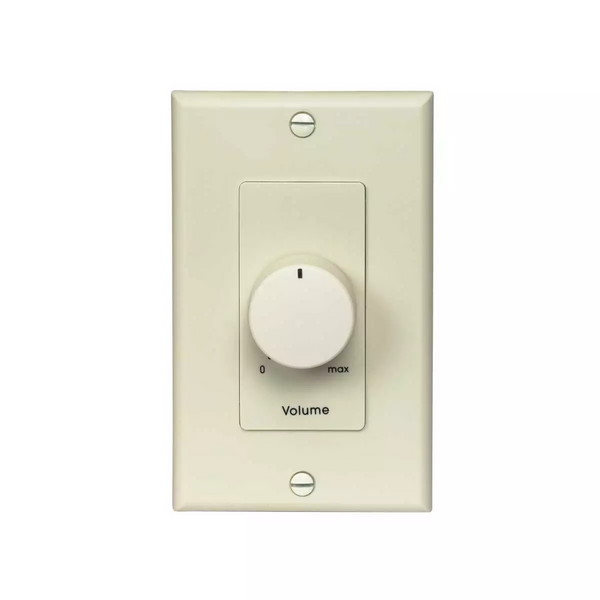

ATTENUATOR-10K OHM POTENTIOMETER, 1-GANG DECORATOR, ALMOND
Click image to enlarge

10KLVC-DA
ATTENUATOR-10K OHM POTENTIOMETER, 1-GANG DECORATOR, ALMOND

  • UM : EA
  • Estimated Weight: 1.0

The 10k ohm linear taper control for single-point remote level adjustment of voltage controlled amplifiers (VCA, by others) is designed to interface directly with three-wire, 0 to 10 volt control inputs typical on voltage-controlled amplifiers. The 10k ohm potentiometer allows the amplifier’s control voltage to be set or adjusted from a single remote location. Includes one-gang decorator style almond wall plate.

  • Power Rating:  1/2W
  • Resistance:  10k ohm
  • Continuous attenuation (stops at 0/max.)
  • Incremental detents for precision feel
  • Use With:  VCA control or audio circuit
  • Activation:  Rotary knob
  • Termination:  Phoenix-style
  • Wire Capacity:  14-gauge
  • Wall Plate:  1-gang decorator style
  • Finish:  Almond
  • Fits standard E.O. box (2.125 in. min. depth)
