139042 | ACCESS E, 165", 16:10, MATT WHITE XT1000E, 110V

  • MAP: $3,717.00 / EA
  • List Price: $4,646.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
ACCESS E, 165", 16:10, MATT WHITE XT1000E, 110V
Click image to enlarge

139042
ACCESS E, 165", 16:10, MATT WHITE XT1000E, 110V

  • UM : EA
  • Estimated Weight: 153.0

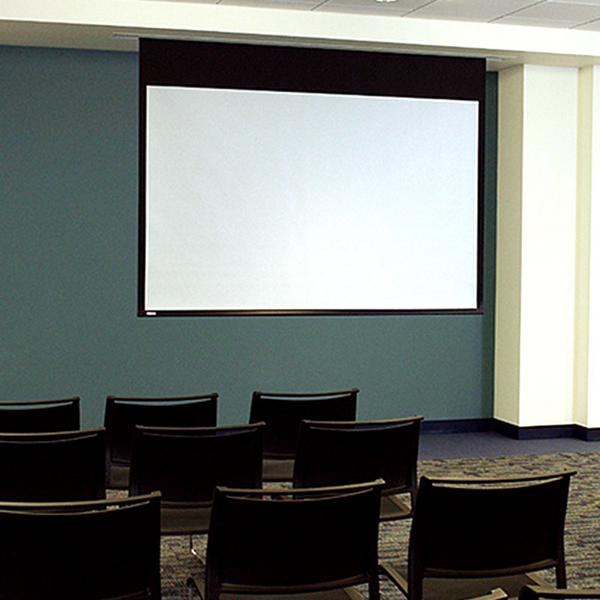

The Draper Access E Electric Projection Screen offers a ceiling-recessed design for concealed installations, perfect for classrooms and boardrooms.

The ceiling-recessed Access E projection screen works well in universities, board rooms, training rooms, or home theaters. Ceiling-recessed screens are hidden from view when not in use providing complete concealment. Free-hanging screens maintain flatness due to the weight of the viewing surface and bottom dowel. Case includes a bottom access panel door for easy service and maintenance.

Part number:139042
Surface material:Matt White XT1000E
Image Format:16:10
Diagonal size:165"
Image/Viewable area:87 1/2" x 140"
Overall size:92 1/2" x 144"
Case length:157 ¾"
Product weight:104 pounds
Shipping weight:153 pounds

  • Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange.
  • Built-in controls may increase case length. Mounting brackets may add to case dimensions. See Submittal in Technical Documents tab.
  • White case standard. Black available upon request.
  • Maximum image width up to 16' (488 cm) wide, depending on surface selection.
  • Adjustable or removable hoisting brackets included for easy lifting during installation.
  • Black drop standard, depending on screen size. Extra drop available upon request and may increase case size.
  • Sliding brackets on top of the case allow for adjustments when mounting.
  • Sliding brackets inside case accommodate different size screens.
  • Bottom access panel door is detachable for service or maintenance.
  • Quick-connect wiring allows early case installation with screen added later.
  • Includes 110V, 3-position switch (standard). Quiet low-voltage motors and 220V options available.
  • Low-voltage, video interface, or other controls can be built into housing for below-ceiling access
  • Custom sizes available.
  • UL Listed
