139116QU | ACCESS E, 123", 16:10, MATT WHITE XT1000E, 110V, QUIET MOTOR & LVC-IV LOW VOLTAGE CONTROLLER

139116QU
ACCESS E, 123", 16:10, MATT WHITE XT1000E, 110V, QUIET MOTOR & LVC-IV LOW VOLTAGE CONTROLLER

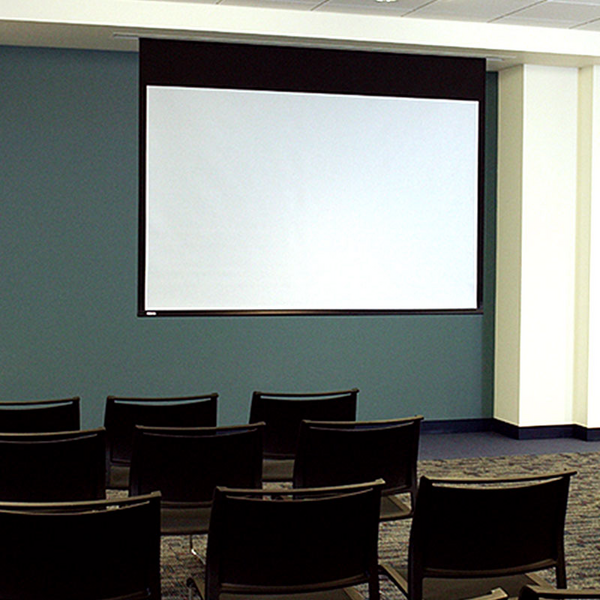

The Access E Electric Projection Screen offers a ceiling-recessed design for concealed installations, perfect for classrooms and boardrooms.

The ceiling-recessed Access E projection screen works well in universities, board rooms, training rooms, or home theaters. Ceiling-recessed screens are hidden from view when not in use providing complete concealment. Free-hanging screens maintain flatness due to the weight of the viewing surface and bottom dowel. Case includes a bottom access panel door for easy service and maintenance.

• Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange.

• Built-in controls may increase case length. Mounting brackets may add to case dimensions. See Submittal in Technical Documents tab.

• White case standard. Black available upon request.

• Maximum image width up to 16' (488 cm) wide, depending on surface selection.

• Adjustable or removable hoisting brackets included for easy lifting during installation.

• Black drop standard, depending on screen size. Extra drop available upon request and may increase case size.

• Sliding brackets on top of the case allow for adjustments when mounting.

• Sliding brackets inside case accommodate different size screens.

• Bottom access panel door is detachable for service or maintenance.

• Quick-connect wiring allows early case installation with screen added later.

• Includes 110V, 3-position switch (standard). Quiet low-voltage motors and 220V options available.

• Low-voltage, video interface, or other controls can be built into housing for below-ceiling access

• Custom sizes available.

• UL Listed.
