139117 | ACCESS E SCREEN, 137" DIAG (72.5" X 116"), 16:10 FORMAT, MATT WHITE XT1000E SURFACE, 110V STD MOTOR
139117
ACCESS E SCREEN, 137" DIAG (72.5" X 116"), 16:10 FORMAT, MATT WHITE XT1000E SURFACE, 110V STD MOTOR
139117
ACCESS E SCREEN, 137" DIAG (72.5" X 116"), 16:10 FORMAT, MATT WHITE XT1000E SURFACE, 110V STD MOTOR
- UM : EA
- Estimated Weight: 121.0

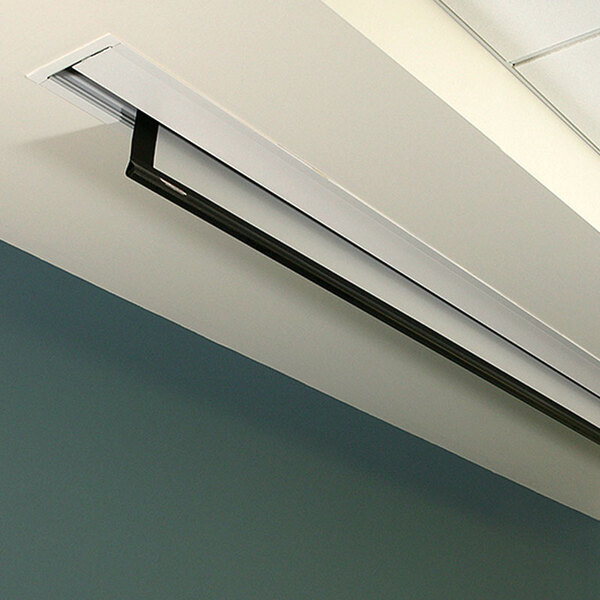

The Access E Electric Projection Screen offers a ceiling-recessed design for concealed installations, perfect for classrooms and boardrooms.

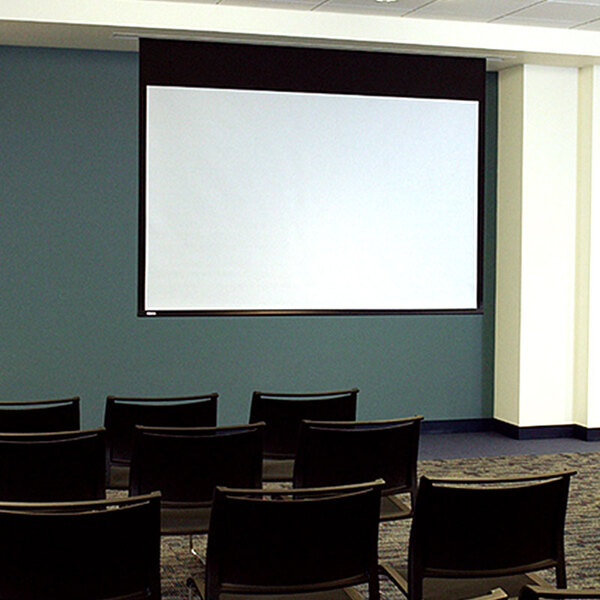

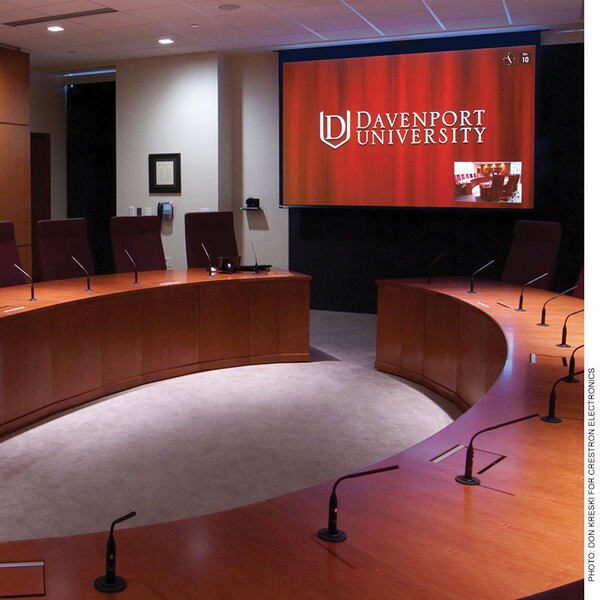

The Draper Access E Model 139117 is a ceiling-recessed electric projection screen designed for versatile installations in boardrooms, mid-sized training rooms, universities, and home theaters. It features a 137-inch diagonal viewing area with a 16:10 aspect ratio, utilizing the Matt White XT1000E viewing surface for accurate color rendition and broad viewing angles. The screen includes a 110V motor and comes equipped with the LVC-IV Low Voltage Controller for seamless integration with control systems. Its free-hanging, fiberglass-backed design ensures a flat viewing surface, while the detachable bottom closure panel allows easy access for maintenance. Adjustable mounting brackets and quick-connect wiring facilitate straightforward installation, making the Access E Model 139117 a reliable choice for professional AV setups.
|
Part number: |
139117 |
|
Surface material: |
Matt White XT1000E |
|
Image Format: |
16:10 |
|
Diagonal size: |
137" |
|
Image/Viewable area: |
72 1/2" x 116" |
|
Overall size: |
76 1/2" x 120" |
|
Case length: |
133 ¾" |
|
Product weight: |
90 pounds |
|
Shipping weight: |
121 pounds |
Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.
Maximum image width up to 16' (488 cm) wide, depending on surface selection.
Adjustable or removable hoisting brackets included for easy lifting during installation.
Black drop standard, depending on screen size. Extra drop above image area available upon request. Extra drop may increase case size.
Sliding brackets on top of the case allow for adjustments when mounting.
Sliding brackets inside case accommodate different size screens.
Bottom access panel door is detachable for easy service or maintenance.
Quick-connect wiring allows for early installation of the case with the addition of the screen later.
Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.
Low voltage, video interface or other controls can be built into housing for access from below ceiling.
White case standard, black available upon request.
Custom sizes available.
UL Listed.
