140109 | ACCESS V, 110"D (54" X 96"), HDTV 16:9, MATT WHITE XT1000VB, INCLUDES 110V, 3-POSITION SWITCH
140109
ACCESS V, 110"D (54" X 96"), HDTV 16:9, MATT WHITE XT1000VB, INCLUDES 110V, 3-POSITION SWITCH
140109
ACCESS V, 110"D (54" X 96"), HDTV 16:9, MATT WHITE XT1000VB, INCLUDES 110V, 3-POSITION SWITCH
- UM : EA
- Estimated Weight: 105.0

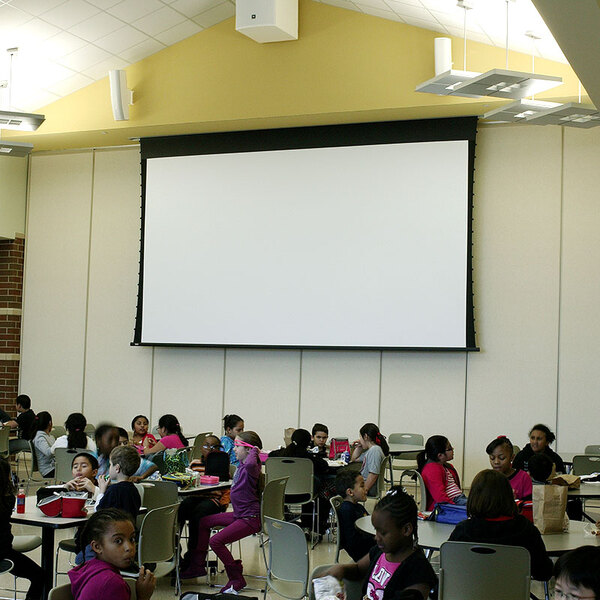

The Draper Access V projection screen delivers a premium, ceiling-recessed solution ideal for commercial environments such as universities, boardrooms, and training rooms. Its concealed design keeps the screen hidden when not in use for a clean, professional appearance. A plug-in wiring system allows early installation of the case during construction, with the screen added later to prevent job site damage. The case can be installed during early construction to prevent job site damage, with the screen added later. A bottom access panel allows easy maintenance without visible fasteners, and the unit is plenum-rated for use in air-handling spaces.
Part number: 140109 Surface material: Matt White XT1000VB Image Format: HDTV Diagonal size: 110" Image/Viewable area: 54" x 96" Case length: 120 3/8" Product weight: 87 pounds Shipping weight: 105 pounds
- Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), including trim flange.
- Built-in controls may increase case length; mounting brackets may add to overall dimensions. See Submittal for details.
- Maximum image width up to 16' (488 cm). Custom sizes available.
- Image area fully framed in black with a standard 12" (30 cm) black drop at the top.
- Adjustable or removable hoisting brackets included for easier lifting during installation.
- Sliding brackets on top of case allow flexible mounting adjustments.
- Internal sliding brackets accommodate varying screen sizes.
- Bottom access panel detaches for easy service and maintenance.
- Quick-connect wiring enables early case installation with screen added later.
- Low voltage, video interface, or other control options can be built into housing for below-ceiling access.
- Includes 110V, 3-position switch (standard). Quiet low voltage and 220V motor options available.
- Standard white case; black available upon request.
- UL Listed.
