19430.000.55

  • UM : EA

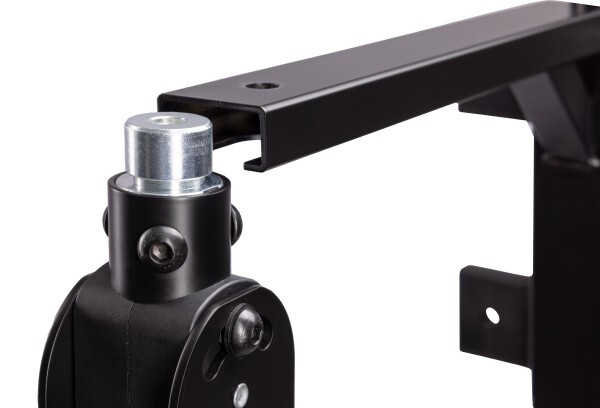

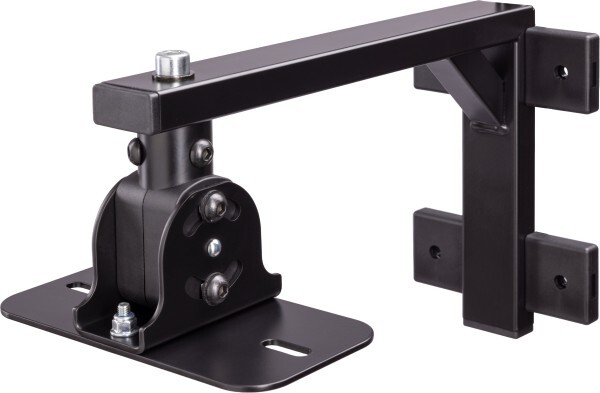

The speaker wall mount allows equipment to be installed on a wall. Compatible with the Yamaha loudspeakers below, this bracket allows the position and angle of the speakers to be easily adjusted. Easy mounting by convenient hooking in and screw locking.

Direct fit: DBR12, DBR10, CBR12, CBR10, HS8I, HS7I

Requires Yamaha's U-bracket:  DZR10, CZR10, DXR10mkII, DXR8mkII, DHR10, CHR10



Adjustment: continuous

Angle of inclination: -45° to 45°

Bearing plate: 180 x 90 mm

EAN: 4016842122936

Weight: 2.3 kg

Material: steel

Max. load capacity: 25 kg

Mounting: attaches to walls

Spacing of holes: 60 - 70 mm or 115 - 150 mm

Swivel: 360°

Type: black

Wall clearance: 271 mm

Special features: Direct fit: DBR12, DBR10, CBR12, CBR10, HS8I, HS7I Requires Yamaha's U-bracket: DZR10, CZR10, DXR10mkII, DXR8mkII, DHR10, CHR10
