254246EZGY1000 | 23AWG 4-PAIR CAT6 UTP PLENUM NETWORK CABLE, 1000FT EZ BOX, GRAY

254246EZGY1000
23AWG 4-PAIR CAT6 UTP PLENUM NETWORK CABLE, 1000FT EZ BOX, GRAY

MAP: $499.08 / EA
List Price: $558.96 / EA
Log in to see if custom discounts apply
Case Quantity: 1
Sign In or Submit RFQ for accurate lead times

Quantity: EA

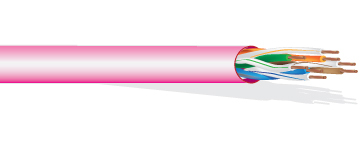

Click image to enlarge

254246EZGY1000
23AWG 4-PAIR CAT6 UTP PLENUM NETWORK CABLE, 1000FT EZ BOX, GRAY

UM : EA
Estimated Weight: 28.0

West Penn Wire 254246EZGY1000 is a gray 1000-foot Category 6 UTP network cable designed for commercial structured cabling and data installations requiring CMP plenum-rated cable. It uses four twisted pairs of 23AWG solid bare-copper conductors in an unshielded construction with a flexible plenum jacket.

The 254246 family is rated to Category 6 TIA/EIA 568.2-D performance and is tested through 550 MHz, with performance above 250 MHz provided by West Penn for engineering purposes. Typical applications include Ethernet network infrastructure, IP-based AV, IP cameras, digital integration, and other commercial data systems.

This exact configuration, 254246EZGY1000, provides 1000 feet of gray CMP/CMP-LP cable for use in approved environmental-air spaces and other indoor commercial plenum installations.

CONDUCTOR PARAMETERS

Number Of Pairs

AWG Size

Conductor Stranding

Solid

Conductor Type

Bare Copper

Nominal DCR

22 Ohm/1000ft

INSULATION PARAMETERS

Insulation Type

Flouropolymer

Insulation Color Code

1.Blue,WH-Blue 2.Orange,WH-Orange 3.Green,WH-Green 4.Brown, WH-Brown

SHIELDING PARAMETERS

Shield Type

Unshielded Twisted Pair (UTP)

ELECTRICAL CHARACTERISTICS

Nominal Impedance

100 Ohm

Nominal Capacitance Between Conductors

15 pF/ft

OVERALL CONSTRUCTION PARAMETERS

Total Number of Conductors

Jacket Type

Flexible Plenum

Nominal Cable O.D.

0.225 in

Plenum

Yes

NEC UL Rating

CMP - CMP-LP

RoHS Compliant

Yes

ANSI/TIA Category

Category 6 TIA/EIA 568.2-D

TIA Test

TIA-568.2-D

Pull Tension

40 lbs

Bend Radius

1.125 in

Cable Weight

27 lbs

254246 Specs
View / Download
