26713.000.56 | BASE PLATE M (3 X M20)
26713.000.56
BASE PLATE M (3 X M20)
26713.000.56
BASE PLATE M (3 X M20)
- UM : EA

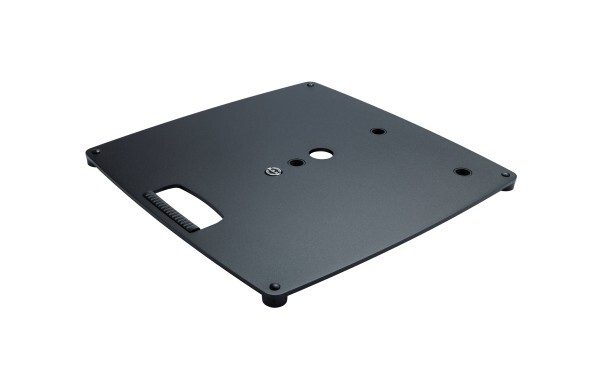

Heavy and solid base plate for all standard distance rods and rod combinations with M20 threaded bolts. Depending on requirements, there are three ways to position the column. In addition to the centric and off-center position, the rod combination can also be mounted in the corner. An ergonomic carrying handle, a cable management and four sturdy rubber feet are further useful features. The dimensions are 489 x 489 mm, with a weight of 10.7 kg.
Dimensions: 489 x 489 x 23 mm
EAN: 4016842122066
Weight: 10.7 kg
Material: steel
Threaded connector: M20
Type: structured black
Special features: flat steel plate; includes a practical integrated handle and a cable management; depending on the requirements, there are three ways to position the distance rod
