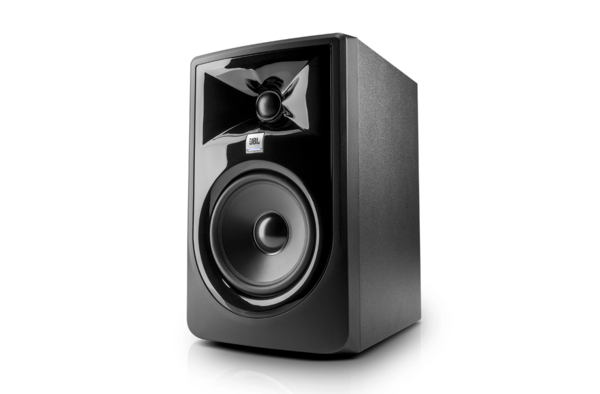

305PMKII | POWERED 5" 2-WAY STUDIO REFERENCE MONITOR
305PMKII
POWERED 5" 2-WAY STUDIO REFERENCE MONITOR
305PMKII
POWERED 5" 2-WAY STUDIO REFERENCE MONITOR
- UM : EA
- Estimated Weight: 13.0
The next-generation JBL 305P MkII compact powered studio monitor makes legendary JBL performance available to every studio. With the revolutionary JBL Image Control Waveguide and refined transducers, JBL 305P MkII offers stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that enhances the critical listening capabilities of any modern workspace. Featuring patented technologies derived from the JBL 7 Series and M2 Master Reference Monitors, and sporting a sleek, modern design, JBL 305P MkII delivers outstanding performance and an enjoyable mix experience at an accessible price.
Features
Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
Next-generation JBL transducers for optimized transient response and improved linearity
Patented Slip Stream low-frequency port for superior bass performance at all playback levels
Dual integrated, custom Class-D amplifiers provide 82 watts of power for high output and dynamic range
New Boundary EQ settings compensate for low frequency variants introduced by the environment
HF Trim switch adjusts high-frequency output to room acoustics or personal preferences
Flexible connectivity with balanced XLR and 1/4" TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control
Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
Strenuous JBL 100-hour full-power test ensures years of reliability
Sleek, modern design provides a visual upgrade to any studio
|
F DRIVER SIZE |
203mm (5") |
|
HF DRIVER SIZE |
25mm (1") |
|
HF DRIVER TYPE |
Soft dome |
|
CROSSOVER |
1725Hz 4th order acoustic Linkwitz-Riley |
|
OK FOR USE NEAR MAGNETICALLY SENSITIVE EQUIPMENT |
Yes |
|
INPUT SENSITIVITY (-10dBV INPUT) |
92dB / 1m |
|
POWER CONFIGURATION |
Bi-amplified |
|
HF DRIVER POWER AMP |
41W, Class-D |
|
LF DRIVER POWER AMP |
41W, Class-D |
|
FREQUENCY RESPONSE (±3dB) |
49Hz – 20kHz |
|
FREQUENCY RANGE (-10dB) |
43Hz – 24kHz |
|
LOW FREQUENCY EXTENSION (-10dB) |
43Hz |
|
MAXIMUM CONTINUOUS SPL* |
94dB |
|
MAXIMUM PEAK SPL** |
108dB |
|
MAXIMUM PEAK INPUT LEVEL (-10dBV / +4dBu) |
+6dBV / +20.3dBu |
|
SYSTEM DISTORTION CRITERIA |
<10% THD at maximum output with full compressor / limiter engagement |
|
ELECTRICAL DISTORTION CRITERIA |
0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output |
|
SIGNAL TO NOISE RATIO |
75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output |
|
COVERAGE HORIZONTAL x VERTICAL |
120° x 90° |
|
ANALOG INPUT TYPES |
1 x XLR female, 1 x TRS female, balanced |
|
HF TRIM CONTROL |
-2dB, 0dB, +2dB |
|
BOUNDARY EQ |
LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB |
|
AC INPUT VOLTAGE |
100 – 240VAC (±10%), 50 / 60Hz |
|
ENCLOSURE TYPE |
Ported |
|
ENCLOSURE CONSTRUCTION |
15mm MDF |
|
ENCLOSURE FINISH |
Matte black PVC |
|
BAFFLE CONSTRUCTION |
Injection-molded structural ABS |
|
CABINET DIMENSIONS (H x W x D***) |
298 x 185 x 231mm (11.7" x 7.3" x 9.1") |
|
DISPLAY CARTON (H x W x D) |
354 x 244 x 299mm (13.9" x 9.6" x 11.8") |
|
SHIPPING CARTON (H x W x D) |
373 x 260 x 315mm (14.7" x 10.2" x 12.4") |
|
NET WEIGHT |
4.73 kg (10.43 lbs) |
|
SHIPPING GROSS WEIGHT |
5.72 kg (12.61 lbs) |
*Measured using full-bandwidth pink noise, C-Weighted
** Measured C-Weighted
*** Depth measured without power cord and audio connectors
(typical power cord = 2 inches, typical XLR connector = 2.5 inches)
