3635 | 8 OHM, SINGLE 18" BASS REFLEX SUBWOOFER SYSTEM, SHALLOW PROFILE. COMPONENTS: SINGLE 2042H

  • MAP: $1,349.00 / EA
  • List Price: $1,348.89 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
8 OHM, SINGLE 18" BASS REFLEX SUBWOOFER SYSTEM, SHALLOW PROFILE. COMPONENTS: SINGLE 2042H

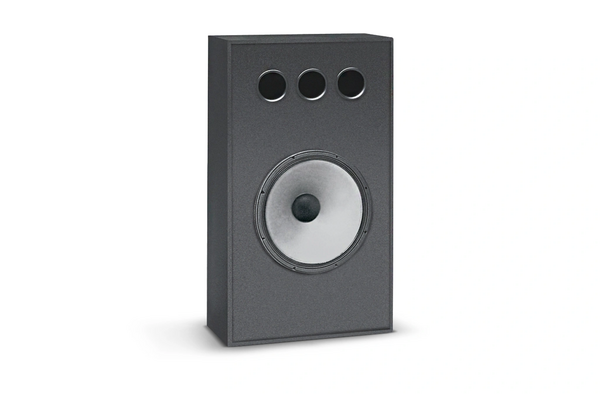

Click image to enlarge

3635
8 OHM, SINGLE 18" BASS REFLEX SUBWOOFER SYSTEM, SHALLOW PROFILE. COMPONENTS: SINGLE 2042H

  • UM : EA
  • Estimated Weight: 3.0

Cinema Subwoofer System

The 3635 subwoofer provides natural low-frequency sound quality for music and dialog in small cinema applications.

Features:

  • Components: One 460 mm (18 in) low frequency driver.
  • Shallow profile cabinet minimizes behind-screen space.
Frequency Range (±3 dB) 38 Hz - 100 Hz
Frequency Range (-10dB) 28 Hz - 500 Hz
Power Handling (2Hr AES Rating) 300 W
Sensitivity 100 dB
Nominal Impedance 8Ω
RecommendedCrossover Frequency 100 kHz
Half-Space Reference Efficiency 5%
Maximum AcousticPower Output 15 W IEC Standard (Sine Wave Input)
System Polarity Positive Voltage to RED produces forward cone motion
Input Connectors Barrier Strip Screw Terminals
Dimensions (H x W x D) 1168 x 651 x 368 mm(46 x 25.625 x 14.5 in)
Net Weight (each) 113 lb (51 kg)
Maximum SPL (1m) 125 dB
