3722-HF | HIGH FREQUENCY SECTION FOR 3722 SYSTEM. BI-AM COMPONENTS 2374 SCREENARRAY HORN,

  • MAP: $569.00 / EA
  • List Price: $569.17 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH FREQUENCY SECTION FOR 3722 SYSTEM. BI-AM COMPONENTS 2374 SCREENARRAY HORN,
Click image to enlarge

3722-HF
HIGH FREQUENCY SECTION FOR 3722 SYSTEM. BI-AM COMPONENTS 2374 SCREENARRAY HORN,

  • UM : EA
  • Estimated Weight: 3.0

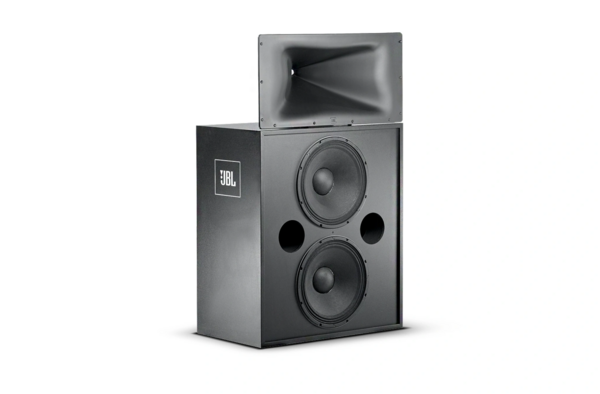

The 3722-HF is a two-way ScreenArray cinema loudspeaker system designed for cinematic sound reproduction. It features a configuration optimized for accurate playback of cinema soundtracks.

The system is compact in size and engineered for cost-effective installation and operation.

Features:

  • Passive model with network (3722N) or BiAmp Ready
  • Power Capacity: 400 W continuous IEC pink noise
  • Sophisticated crossover network
  • Compact and cost-effective system
  • Smooth response
  • Controlled coverage
Frequency Response 40 Hz - 18 kHz
Frequency Range 30 Hz - 18 kHz
Sensitivity 104 dB, 2.83V @ 1m
Nominal Impedance 4Ω
Maximum SPL 127 dB @ 1m, 133 dB peak
Passive System Input Power Rating 400W
Crossover Frequency 1300 Hz
Low Frequency Drivers 2 M115H-8A 380 mm dia, 61 mm edgewound ribbon voice coil
High Frequency Pack One 2418H-1 Compression Driver, One 2374 HF horn, adjustable bracket
Power Handling (2Hr AES Rating) 400W
