3730-M/HF | MID/HIGH FREQUENCY SECTION FOR 3730 SYSTEM. COMPONENTS: ONE 195H MID FREQUENCY AND ONE

  • MAP: $1,245.00 / EA
  • List Price: $1,245.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
MID/HIGH FREQUENCY SECTION FOR 3730 SYSTEM. COMPONENTS: ONE 195H MID FREQUENCY AND ONE
Click image to enlarge

3730-M/HF
MID/HIGH FREQUENCY SECTION FOR 3730 SYSTEM. COMPONENTS: ONE 195H MID FREQUENCY AND ONE

  • UM : EA
  • Estimated Weight: 3.0

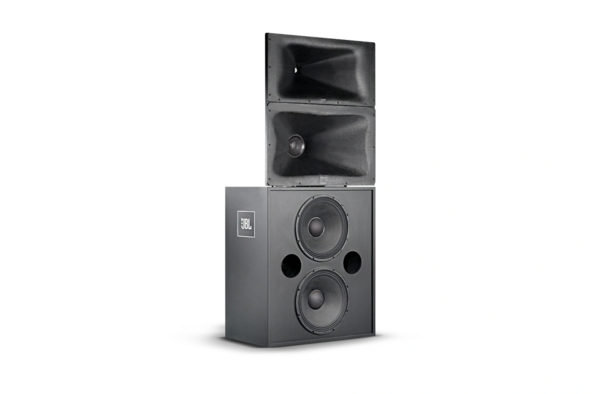

The 3730-M/HF is a three-way bi-amplified/passive ScreenArray cinema loudspeaker system designed for reproduction of cinema soundtracks. It integrates multiple drivers to cover a wide frequency range with precise sound output.

The system offers a compact design optimized for installation in cinema environments. It supports bi-amplified operation and passive crossover configurations, allowing flexible integration with audio processing equipment.

Features:

  • Three-Way ScreenArray design
  • Bi-amplified or fully passive switchable operation
  • SSC Screen Spreading Compensation
  • Optimized Aperture Waveguide technology
  • Low Frequency dual 15" transducers with ribbon wire voice coils
Frequency Range ±3 dB 40 Hz – 18 kHz
Frequency Range -10 dB 30 Hz – 18 kHz
Sensitivity 105 dB @ 2.83V
Nominal Impedance 4 Ω
Passive System Input Power Rating 600 W
Bi-Amp System Input Power Rating LF 500 W, HF 125 W
Nominal Coverage 90º horizontal, -30º/+20º vertical
Crossover Frequency 450 Hz, 2 kHz
Input Power Rating 125W AES; 300W recommended amplifier
Input Connectors Screw terminal barrier strip
