4722-HF | HIGH FREQUENCY SECTION FOR 4722 SYSTEM – BI-AMP. COMPONENTS: 2384 SCREENARRAY HORN,

  • MAP: $945.00 / EA
  • List Price: $942.56 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH FREQUENCY SECTION FOR 4722 SYSTEM – BI-AMP. COMPONENTS: 2384 SCREENARRAY HORN,
Click image to enlarge

4722-HF
HIGH FREQUENCY SECTION FOR 4722 SYSTEM – BI-AMP. COMPONENTS: 2384 SCREENARRAY HORN,

  • UM : EA
  • Estimated Weight: 3.0

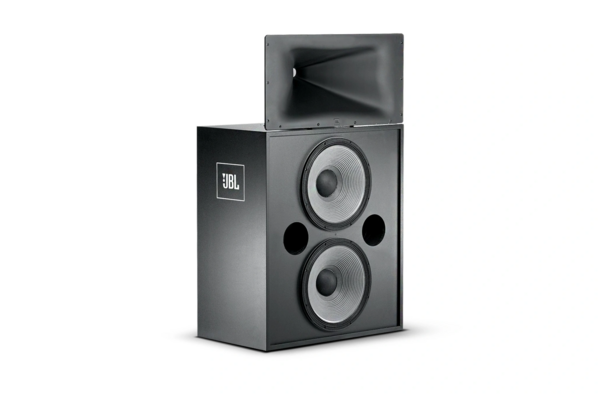

The 4722-HF is a two-way ScreenArray cinema loudspeaker system designed for cinema soundtrack reproduction. It features a compact design optimized for accurate audio performance.

The system incorporates components arranged to deliver consistent sound quality suitable for cinema environments.

Features:

  • Two-way system
  • Passive model with network (4722N)
  • Bi-amp Ready (4722)
  • Dual 380mm low frequency transducers
  • Power capacity: 600W continuous IEC pink noise
Frequency Response (±3 dB) 40 Hz - 19 kHz
Frequency Range (-10 dB) 30 Hz - 20 kHz
Sensitivity 104 dB @ 2.83 V
Nominal Impedance 4722N: 4 Ω, 4722 HF: 8 Ω, 4722 LF: 4 Ω
Maximum SPL (1 m) 130 dB, 136 dB peak
Bi-Amp System Input Power Rating LF: 808 W, HF: 85 W
Crossover Frequency 4722: 630 Hz, 4722N: 800 Hz
4739 Low Frequency 2 x 26SH-1 transducers in 4509 LF enclosure
4722-HF High Frequency Pack One 2432H compression driver, one 2384 horn, adjustable bracket
Power Handling (2 Hr AES Rating) 800 W
