4722N | 2WAY SCREEN ARRAY W/NTWRK-PASSIVE APPL

  • MAP: $2,575.00 / EA
  • List Price: $2,575.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
2WAY SCREEN ARRAY W/NTWRK-PASSIVE APPL
Click image to enlarge

4722N
2WAY SCREEN ARRAY W/NTWRK-PASSIVE APPL

  • UM : EA
  • Estimated Weight: 3.0

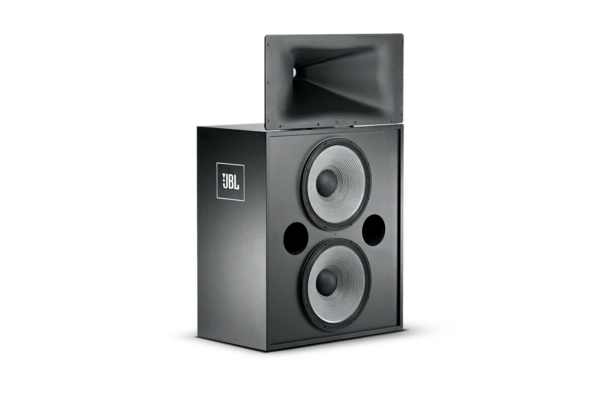

The 4722N is a two-way ScreenArray cinema loudspeaker system designed for accurate reproduction of cinema soundtracks. It features a compact enclosure suitable for integration into various screening environments.

Features:

  • Two-way system for accurate cinema soundtrack reproduction
  • Available as Passive model with network (4722N) or Bi-amp Ready (4722)
  • Dual 380 mm (15 in) low frequency transducers
  • Power capacity: 600 W continuous IEC pink noise
Frequency Response 40 Hz - 19 kHz
Frequency Range 30 Hz - 20 kHz
Sensitivity 104 dB @ 2.83V
Nominal Impedance 4722N: 4Ω; 4722: HF 8Ω; 4722: LF 4Ω
Maximum SPL 130 dB continuous; 136 dB peak
Bi-Amp System Input Power Rating LF 808W; HF 85W
Crossover Frequency 4722 630 Hz; 4722N 800 Hz
4739 Low Frequency 2 x 26SH-1 380 mm transducers in 4509 LF enclosure
4722-HF High Frequency Pack 2432H compression driver, 2384 horn, adjustable bracket
Power Handling (2 hr AES Rating) 800W
