4722N-HF | HIGH FREQUENCY SECTION FOR 4722N SYSTEM – PASSIVE. COMPONENTS: 2384 SCREENARRAY HORN,

  • MAP: $945.00 / EA
  • List Price: $943.04 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH FREQUENCY SECTION FOR 4722N SYSTEM – PASSIVE. COMPONENTS: 2384 SCREENARRAY HORN,
Click image to enlarge

4722N-HF
HIGH FREQUENCY SECTION FOR 4722N SYSTEM – PASSIVE. COMPONENTS: 2384 SCREENARRAY HORN,

  • UM : EA
  • Estimated Weight: 3.0

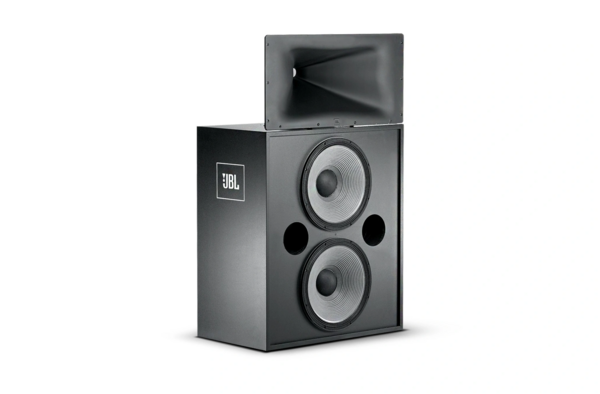

The 4722N-HF is a two-way ScreenArray cinema loudspeaker system designed for accurate reproduction of cinema soundtracks. It features a compact enclosure optimized for installation in various cinema environments.

Features:

  • Two-way system
  • Passive model with network (4722N)
  • Bi-amp Ready 4722
  • Dual 380mm (15 in) low frequency transducers
  • Power capacity: 600 W continuous IEC pink noise
Frequency Response (±3 dB) 40 Hz - 19 kHz
Frequency Range (-10 dB) 30 Hz - 20 kHz
Sensitivity 104 dB @ 2.83 V
Nominal Impedance 4722N: 4 Ω, 4722 HF: 8 Ω, 4722 LF: 4 Ω
Maximum SPL (1m) 130 dB, 136 dB peak
Bi-Amp System Input Power Rating LF: 808 W, HF: 85 W
Crossover Frequency 4722: 630 Hz, 4722N: 800 Hz
4739 Low Frequency 2 x 26SH-1 380 mm (15 in) dia., 76 mm (3 in) edgewound ribbon voice coil transducers in 4509 LF enclosure
4722-HF High Frequency Pack One 2432H compression driver, one 2384 horn, adjustable bracket
Power Handling (2 Hr AES Rating) 800 W
