4732-M/HF | MID/HIGH FREQUENCY SECTION FOR 4732 SYSTEM. COMPONENTS: FOUR 165H MID FREQUENCY AND ONE 2432H
4732-M/HF
MID/HIGH FREQUENCY SECTION FOR 4732 SYSTEM. COMPONENTS: FOUR 165H MID FREQUENCY AND ONE 2432H

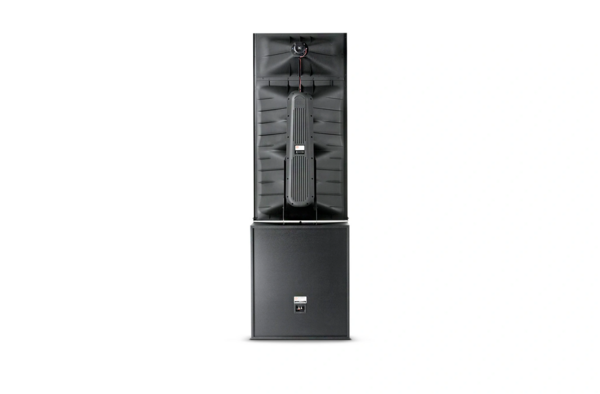

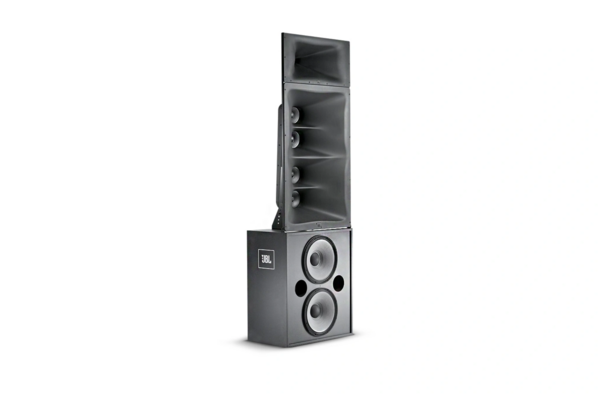

Click image to enlarge
4732-M/HF
MID/HIGH FREQUENCY SECTION FOR 4732 SYSTEM. COMPONENTS: FOUR 165H MID FREQUENCY AND ONE 2432H
- UM : EA
- Estimated Weight: 3.0
The 4732-M/HF is a three-way biamplified or triamplified (T) ScreenArray loudspeaker system designed for medium to large cinema environments. It incorporates a three-way configuration to support critical film sound reproduction.
The system utilizes separate amplification channels for each frequency range to optimize audio performance. It is engineered to provide precise sound coverage suitable for cinema applications.
Features:
- Three-way ScreenArray design for maximum output
- Optimal coverage
- Minimum distortion
- Triamplified or Biamplified operation
- Approved for THX certified applications (4732T)
- Ships fully assembled
- Second Generation Optimized Aperture Waveguide technology for ultra-low distortion
- Extremely uniform frequency response
- Screen Spreading Compensation
- Focused Coverage Technology
- Flat-front waveguide design for easy installation
- Shallow profile for minimum behind-screen depth
| Frequency Response | 40 Hz - 19 kHz |
|---|---|
| Frequency Range | 30 Hz - 20 kHz |
| Sensitivity | 107 dB, 2.83V @ 1m |
| Maximum SPL | 130 dB @ 1m, 136 dB peak |
| System Input Power Rating | LF 800 W, M/HF 200 W, HF 85 W |
| Horizontal Coverage Angle | 90° |
| Vertical Coverage Angle | 20° up, 30° down |
| Directivity Factor (Q) | 10.0 |
| Directivity Index (DI) | 10 dB |
| Nominal Impedance | 4Ω |
×
×
