4BARILS | 4BAR ILS:COMPLETE WASH LIGHTING SOLUTION W/4 ADJUSTABLE HEADS, STAND & BAG,ILS & D-FI USB COMPATIBLE

  • MAP: $359.99 / EA
  • List Price: $512.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
4BAR ILS:COMPLETE WASH LIGHTING SOLUTION W/4 ADJUSTABLE HEADS, STAND & BAG,ILS & D-FI USB COMPATIBLE
4BAR ILS:COMPLETE WASH LIGHTING SOLUTION W/4 ADJUSTABLE HEADS, STAND & BAG,ILS & D-FI USB COMPATIBLE
Click image to enlarge
4BAR ILS:COMPLETE WASH LIGHTING SOLUTION W/4 ADJUSTABLE HEADS, STAND & BAG,ILS & D-FI USB COMPATIBLE
4BAR ILS:COMPLETE WASH LIGHTING SOLUTION W/4 ADJUSTABLE HEADS, STAND & BAG,ILS & D-FI USB COMPATIBLE

4BARILS
4BAR ILS:COMPLETE WASH LIGHTING SOLUTION W/4 ADJUSTABLE HEADS, STAND & BAG,ILS & D-FI USB COMPATIBLE

  • UM : EA
  • Estimated Weight: 36.0

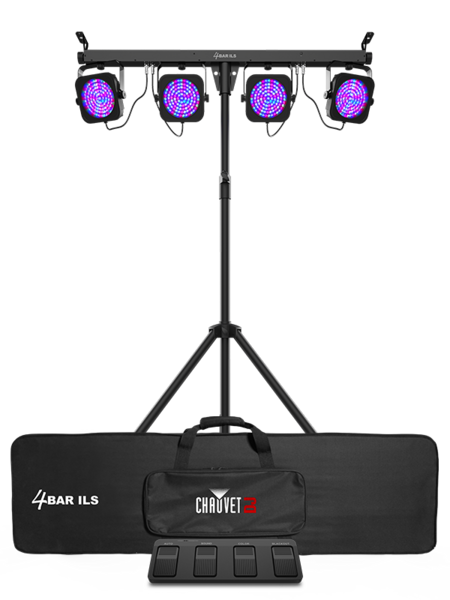

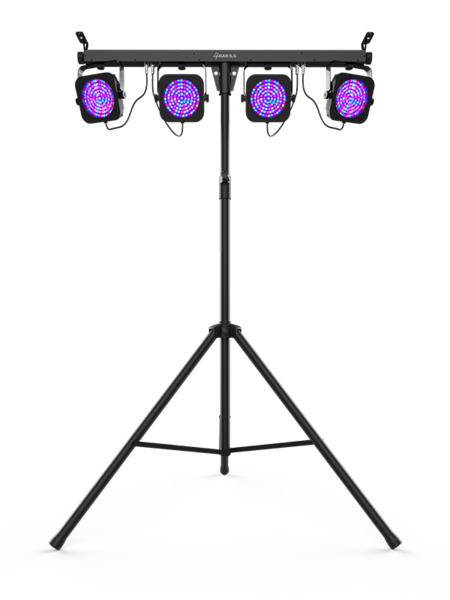

4Bar ILS is a complete wash lighting solution designed for mobile entertainers. The ultra-convenience of the included tripod, wireless footswitch, and carry bags allow you to set up and tear down in minutes. But the ease and versatility of the 4Bar ILS go to higher levels with the addition of compatibility with the Integrated Lighting System (ILS) that makes creating coordinated light shows across an unlimited number of different fixture types easy and fast means control is easier than ever. D-Fi USB compatibility for wireless master/slave and DMX control is also on board. Achieve total room or stage coverage with 4Bar USB’s four individually adjustable heads–create larger, synchronized light shows with other 4BAR fixtures in master/slave mode. Generate shows with easy-to-access, built-in, automated programs, or easily control static colors and automated programs with the optional IRC-6 remote.

Features

  • Complete wash lighting solution designed for mobile entertainers

  • ILS compatibility for use in the ILS ecosystem

  • Achieve total room or stage coverage with 4 individually adjustable heads

  • D-Fi USB compatibility for wireless master/slave or DMX control

  • Easily set-up and tear down in minutes using the included tripod, wireless footswitch and carry bags

  • Increase mounting options by safely mounting to truss using the built-in bolts

  • Create large, coordinated light shows with other 4BAR fixtures in master/slave mode

  • Sound-activated programs dance to the beat of the music

  • Easily control static colors and automated programs with the optional IRC-6 remote

  • Generate a synchronized show in master/slave mode with easy-to-access, built-in automated programs

DMX Channels

3, 5 or 15

DMX Connectors

3-pin XLR

Light Source

432 LEDs (144 red, 144 green, 144 blue) 0.25 W, (20 mA), 100,000 hours life expectancy.

Strobe Rate

0 to 19.9 Hz

Beam Angle

17°

Field Angle

24°

Illuminance

786 lux @ 2 m (per pod)

Input voltage

100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current

29 W, 0.4 A @ 120 V, 60 Hz; 27 W, 0.2 A @ 230 V, 50 Hz

Weight

11 lb (5.0 kg)

Size

43.3 x 2 x 10.5 in (1,100 x 50 x 267 mm)

Approvals

CE, RoHS, UKCA

Stand Height

7 ft 4 in (2.2 m)

Fits Tripod Sizes

1.37 in (35 mm)

Weight (Controller)

1.2 lb (0.6 kg)

Size (Controller)

12.4 x 5.2 x 1.5 in (315 x 132 x 38 mm)

Optional Controllers

IRC-6, D-Fi USB
