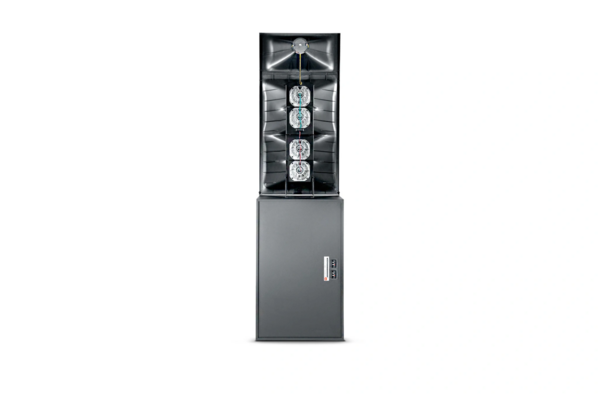

5742-M/HF | MID-HIGH FREQUENCY SECTION FOR 5742 SYSTEM. COMPONENTS: FOUR 2169J 200MM (8 INCH) DIFFERENTIAL DRIVE

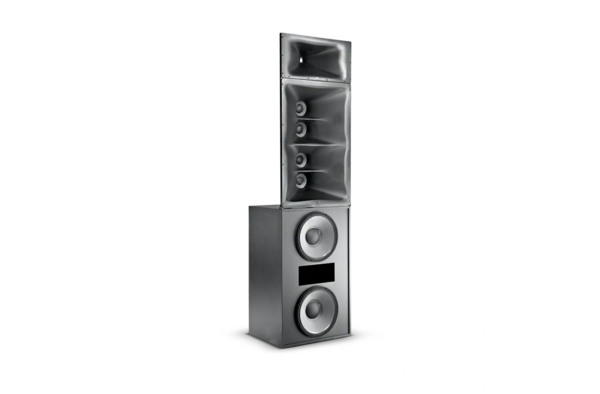

The 5742-M/HF is a 4-way high-power ScreenArray loudspeaker designed for large format and 3D cinema auditoriums. It provides wide coverage across the seating area, delivering a broad dynamic range and extended bandwidth suitable for digital soundtracks.

This loudspeaker system is engineered to minimize distortion levels, ensuring accurate sound reproduction consistent with the original recording. It is intended for use in premier auditorium environments requiring precise audio performance.

Features:

• High power four-way design for maximum output and coverage
• 1400W midrange with four 8" Differential Drive transducers
• 4" neodymium damped titanium diaphragm high frequency compression driver
• 1600W low frequency with two 18" SVG drivers
• Optimized Aperture Waveguide technology for low distortion and uniform frequency response
• JBL Patented SSC Screen Spreading Compensation
• Focused Coverage Technology
• Flat Front Wave Guide design for easy baffle wall installation
• Shallow 24" depth for minimal behind screen space
• High power for critical sound reproduction in large format cinemas and studios
