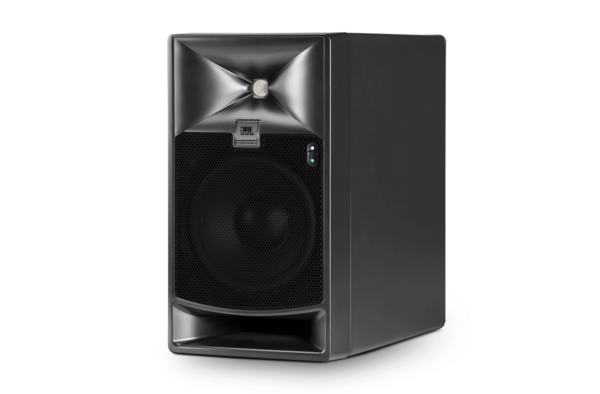

705P | 7 SERIES 5-INCH BI-AMPLIFIED MASTER REFERENCE STUDIO MONITOR

The JBL 705P is a 5-inch bi-amplified self-powered reference monitor designed for music recording, film post-production, and broadcast environments. It incorporates patented driver technologies and the Image Control Waveguide from JBL's 708P and M2 models. The monitor features a compact design with a smaller footprint compared to larger models.

The 705P provides high output levels relative to similarly sized studio monitors, supporting greater dynamic range and extended working distances. It is engineered to deliver an expansive soundstage and accurate sound reproduction across various room sizes.

Features:

• Next-generation JBL driver technology
• Patented JBL Image Control Waveguide
• Integrated dual amplification system with internal floating-point DSP
• Room EQ and delay controls
• Compact enclosures for easy placement and installation
• JBL 725G low-frequency transducer
• JBL 2409H high-frequency transducer
• 2-channel Class-D amplifier HF 250W / LF 250W
• 192 kHz, 32-bit floating point processing
• 12 bands of Room EQ
• 8 bands of User EQ
• 6 factory presets
• 6 user-defined presets
• 18 ms Room Delay
• 150 ms AV Sync Delay
• 1 x XLR-1/4" balanced analog audio input
• 1 x XLR AES3 digital input with 1 x XLR pass-through output
• Digital input supports sample rates up to 192 kHz
• User-enabled sample rate converters
• RJ-45 network connection for HARMAN HiQnet

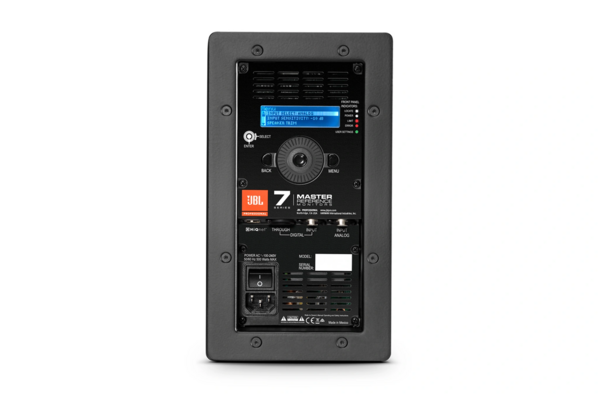

• Rear-panel multi-function controls and LCD display
• Top and bottom mounting points
• Birch plywood cabinets reinforced for mounting
• Protective steel baffles
