80-0185 | XIO BLUETOOTH WHITE US: DANTE I/O ENDPOINT, BLUETOOTH MEDIA IN, BLUETOOTH PHONE I/O, 4X4 DANTE, POE
80-0185
XIO BLUETOOTH WHITE US: DANTE I/O ENDPOINT, BLUETOOTH MEDIA IN, BLUETOOTH PHONE I/O, 4X4 DANTE, POE
80-0185
XIO BLUETOOTH WHITE US: DANTE I/O ENDPOINT, BLUETOOTH MEDIA IN, BLUETOOTH PHONE I/O, 4X4 DANTE, POE
- UM : EA
- Estimated Weight: 1.0

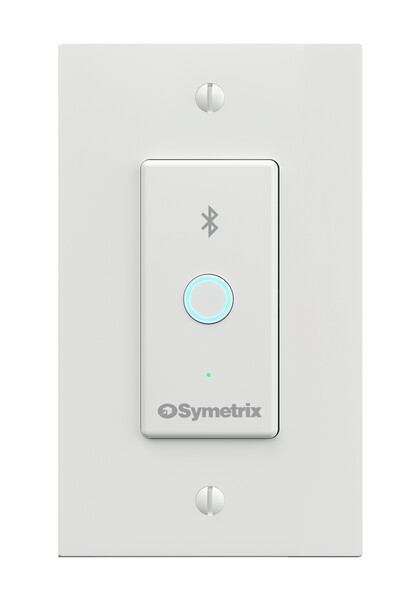

The Symetrix 80-0185 Dante Endpoint is a single-gang, Bluetooth 5.0 PoE audio interface designed for seamless wireless audio streaming in Dante™-enabled AV systems. Featuring high-quality, low-latency audio transmission, this wall-mounted endpoint allows users to pair smartphones, tablets, and laptops for direct Bluetooth audio integration into networked AV systems. With AES67 support, it offers flexible compatibility with professional audio infrastructures. The PoE-powered design ensures easy installation without additional power adapters, making it ideal for conference rooms, hospitality venues, classrooms, and corporate AV applications. The sleek white finish blends discreetly into modern interiors, providing aesthetic and functional wireless connectivity for any Dante-enabled audio system.
Designed to be system-agnostic, the xIO Bluetooth endpoint operates independently of a specific DSP platform and can be deployed successfully within any Dante audio flow. Whether paired with Symetrix DSPs or integrated into third-party Dante ecosystems from manufacturers like Q-SYS, BSS, Biamp, Yamaha, or others, this endpoint provides flexible wireless audio bridging without locking the integrator into a single control architecture.
xIO Bluetooth
- Single gang Bluetooth 5.0 PoE Dante endpoint
- Selectable Bluetooth modes: Media only, Phone only, Both
- PIN code Bluetooth security
- Selectable single or multiple memorized Bluetooth pairings
- LED blackout mode
- Powerful configuration from Composer with flexible control from Symetrix remotes, SymVue touchscreens panels, or user supplied devices
- Perfect for Hospitality, Education, House of Worship, Conferencing, or Residential use
- Available in US or EU single gang form factors and black or white finishes
- Supports standard single gang Decora faceplates
Use Options
• Conference rooms and boardrooms requiring wireless BYOD audio
• System-agnostic Dante network deployments
• Corporate AV and UC environments
• Education classrooms and lecture capture
• Hospitality and divisible meeting spaces
• Adding Bluetooth to existing Dante systems without replacing DSP
Also Consider
• Symetrix Radius NX or Prism DSP processors
• PoE network switches (managed, Dante-optimized)
• Dante-enabled amplifiers (Crown, Powersoft, Ashly, etc.)
• Dante ceiling speakers or endpoints
• Network cable (Cat6 shielded)
• Touch panel control systems from Symetrix or others (Crestron, Q-SYS, AMX, etc.)
System Specifications
Specification | Detail |
Display | Blue LED: Pairing Status; Green LED: Device Status; Button: Pairing control |
Compatibility | Symetrix Composer Series products |
Ethernet Cable | Standard CAT5e or CAT6, maximum device-to-device length = 100 m |
Maximum Devices per System | 128 devices per Site File |
Specification | Detail |
Space Required | Single-gang US or Euro wall box; WHD: 5.62 in (14.28) x 4.5 in (11.43) x 1.2 in (3.05); Depth does not include connector allowance. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections. |
Electrical | PoE IEEE 802.3af Class 0, 15 Watts maximum. No line voltage switching required. |
Ventilation | Maximum recommended ambient operating temperature is 50 C / 122 F. Avoid prolonged exposure to direct sunlight or strong ultraviolet light. |
Shipping Weight | 1.00 lbs (0.454 kg) |
Certifications and Compliance | UL/CSA/EN 62368-1; FCC 15.107:2021; FCC 15.109:2021; ICES003:2020; RoHS; EN 300 328 V2.2.2:2019; EN 301 489-1 v2.2.3:2019; EN 301 489-17 v3.2.4:2020; EN 55035; EN 55032 |
Form Factor | Single-gang US or Euro wall mount |
