80-0211 | xIO XLR 2x2 White US: Dante I/O endpoint, 2 mic/line in, 2 line out, 2x2 Dante, PoE, Decora 2-gang
80-0211
xIO XLR 2x2 White US: Dante I/O endpoint, 2 mic/line in, 2 line out, 2x2 Dante, PoE, Decora 2-gang
80-0211
xIO XLR 2x2 White US: Dante I/O endpoint, 2 mic/line in, 2 line out, 2x2 Dante, PoE, Decora 2-gang
- UM : EA
- Estimated Weight: 2.0

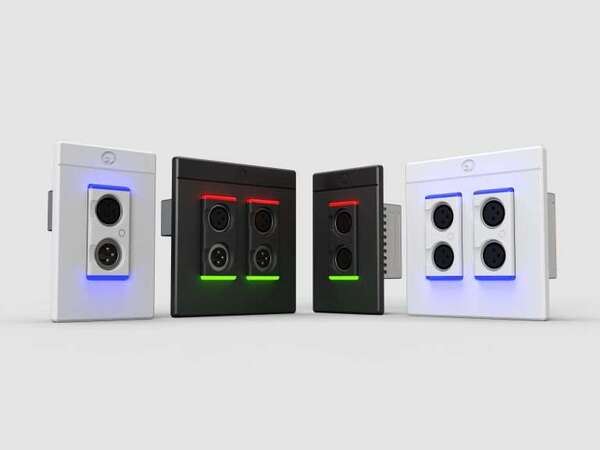

The Symetrix 80-0211 xIO XLR 2x2 Dante Endpoint is a professional-grade PoE-powered audio interface designed to provide high-quality balanced XLR input and output connectivity for Dante™-enabled AV systems. Featuring two XLR inputs and two XLR outputs, this wall-mounted Dante endpoint ensures seamless networked audio integration for conference rooms, auditoriums, houses of worship, and commercial AV applications. With AES67 support and remote control capabilities via Symetrix’s Composer software, the xIO XLR 2x2 offers flexible, high-fidelity audio routing in a compact, sleek wall plate design. Its PoE-powered architecture eliminates the need for additional power supplies, making installation simple and efficient.
SYMETRIX 80-0211: Dante I/O endpoint, 2 mic/line in, 2 line out, 2x2 Dante, PoE, Decora double-gang US version, white
Series Features
- Studio-grade AD/DA
- Transparent mic preamps with up to 51 dB of gain adjustable in 3 dB increments
- Dante-enabled with sampling rates up to 96K
- PoE IEEE 802.3af; 15.4W Max
- Drag-and-drop design in Composer®
- Customizable front-panel RGB LEDs
- Programmable control buttons
- Premium light and dark finishes
- Decora compatible
- Die-cast zinc construction with exacting tolerances
- Symetrix five-year warranty
xIO XLR 2x2 Specifications
System Specifications
|
Specification |
Detail |
|
Power |
PoE IEEE 802.3af; 15.4W Max |
|
Operating Temperature |
Ambient operating temperature 0 C-40 C (32 F-104 F); maximum recommended ambient operating temperature 30 C (86 F) |
|
Sampling Rate |
48 kHz, 96 kHz (configure in Dante Controller) |
Inputs and Outputs
|
Specification |
Detail |
|
Input Frequency Response |
+/- 0.2 dB; 20 Hz-20 kHz (+4 dBu @ 0 dB gain) |
|
Input Crosstalk |
-107 dB (+4 dBu @ 1 kHz @ 0 dB gain) |
|
Input EIN |
<-127 dBu (150 Ohm source impedance, 22.4 kHz BW) |
|
Input CMRR |
>50 dB (1 kHz @ 0 dB gain) |
|
Phantom Power |
+48 VDC @ 10 mA maximum |
|
Output Frequency Response |
+-0.2 dB; 20 Hz-20 kHz (+4 dBu @ 0 dB gain) |
|
Analog Input Maximum Level |
+23.5 dBu (1% THD @ 1 kHz @ 0 dB gain) |
|
Analog Input Impedance |
2k Ohms balanced |
|
Analog Input Dynamic Range |
> 110 dB (A-weighted @ 0 dB gain) |
|
Analog Input THD + Noise |
0.003% (+15 dBu @ 1 kHz @ 0 dB gain) |
|
Analog Input Latency |
0.77 mS (Analog in to Dante Send) |
|
Analog Output Level Maximum |
+23.5 dBu (1% THD+N @ 1 kHz) |
|
Analog Output Impedance |
300 Ohms balanced |
|
Analog Output Dynamic Range |
> 110 dB (A-weighted @ 0 dB gain) |
|
Analog Output THD + Noise |
0.005% (-4 dBFS @ 1 kHz) |
|
Analog Output Latency |
0.60 mS (Dante Send to Analog Out) |
Mechanical Specifications
|
Specification |
Detail |
|
Shipping Weight |
1.75 lbs |
|
Product Weight |
1.25 lbs |
