80-0228 | T-5 Glass: 5” Full-glass touchscreen for system control
80-0228
T-5 Glass: 5” Full-glass touchscreen for system control
80-0228
T-5 Glass: 5” Full-glass touchscreen for system control
- UM : EA
- Estimated Weight: 2.0

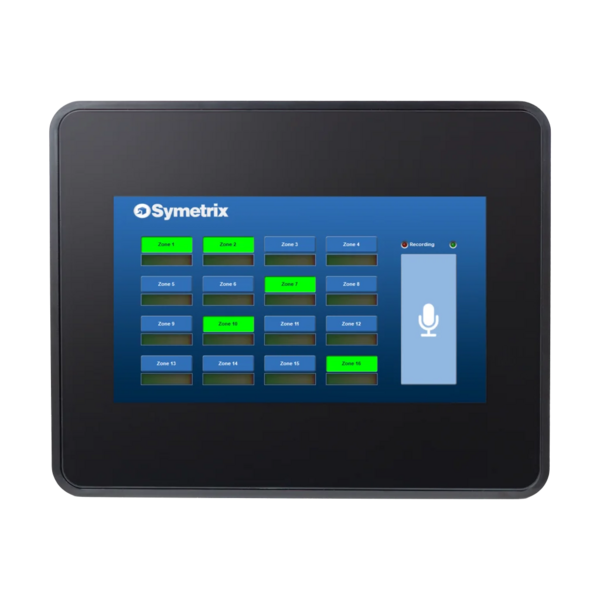

The Symetrix T-5 Glass (80-0228) is a sleek, 5-inch touchscreen control panel designed for customized AV system control using Symetrix’s HTML5-based interface. Built for intuitive and responsive user interaction, the T-5 Glass features a high-resolution capacitive touchscreen and a modern all-glass front panel with a minimalist aesthetic that complements any commercial or corporate interior. As part of the Symetrix T-Series, it enables control of Symetrix DSPs and third-party systems via standard network protocols. The unit supports PoE for streamlined installation and offers robust integration options through Symetrix Composer and SymVue, making it an ideal choice for conference rooms, classrooms, hospitality venues, and other professional AV environments where elegant control is required. The T-5 Glass delivers both functionality and style for integrators who need flexible and reliable user interface solutions.
- 5-inch 1280×720 high-definition touchscreen
- Best-in-class brightness of 500 nits
- Drag-and-drop design and configuration from Symetrix Composer software
- Batch configuration of multiple units
- PoE+ powered
- Fits US and Euro double-gang wall and junction boxes
- Optional tabletop stand accessory
- Five-year warranty
User control in every part of a building. Symetrix touchscreens are ideal for houses of worship, conference rooms, auditoriums, hospitality — anywhere users need to control audio sources and levels.
SymVue interface. Symetrix touchscreens leverage the power of Symetrix’s award-winning SymVue GUI authoring technology, allowing control screens to be created, tested and simulated offline in Composer before being deployed to the touchscreens. Multiple pages with custom controls, unique backgrounds, corporate logos and more can be created quickly and easily with SymVue.
Custom multi-lingual GUIs can be quickly designed using Symetrix Composer and SymVue software, then exported to as many as 80 touchscreens on a system.
Easy batch configuration of multiple touchscreens. Directly managed by Symetrix Composer, touchscreens can simultaneously export/update to named groups of up to 80 touchscreens with programmers’ choice of four different configurations for each export.
Compact and unobtrusive. Symetrix touchscreens fit in any U.S. or EU 2-gang receptacle.
Ethernet-powered. There is no need for external power supplies, since Symetrix touchscreens are powered over Ethernet.
