810-T72 | SPEAKER-8IN CONE, 10OZ MAGNET, 15W, 8 OHM, 5W 70/25V XFMR

  • MAP: $45.41 / EA
  • List Price: $51.60 / EA
  • Log in to see if custom discounts apply
  • Minimum Order Quantity: 3
  • Case Quantity: 16
  • Sign In or Submit RFQ for accurate lead times
SPEAKER-8IN CONE, 10OZ MAGNET, 15W, 8 OHM, 5W 70/25V XFMR
Click image to enlarge

810-T72
SPEAKER-8IN CONE, 10OZ MAGNET, 15W, 8 OHM, 5W 70/25V XFMR

  • UM : EA
  • Estimated Weight: 3.0

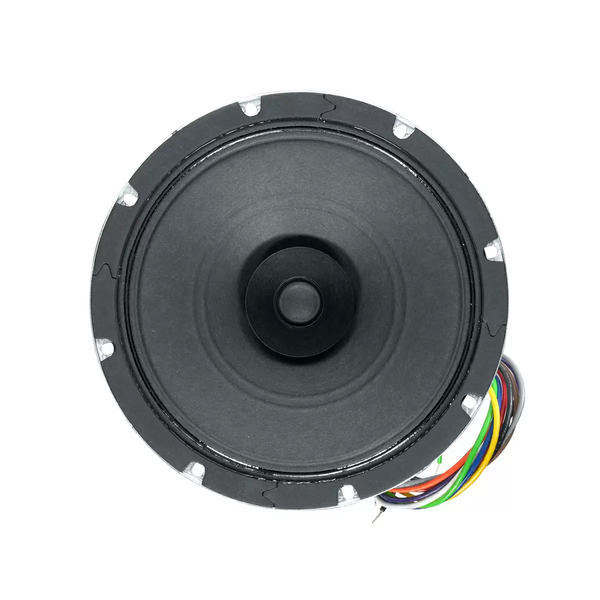

Model 810-T72 is a dual cone 8-inch 15W driver with dual voltage (25V/70V) 5W transformer. It provides solid performance for paging and background music. The driver features a 10 oz. ceramic magnet, 3/4-inch hard fiber whizzer cone, 1-inch voice coil and 20-gauge steel frame with zinc-plated finish. Order grille and enclosure separately.

  • Driver:  8 in. 15W dual cone driver with 10 oz. ceramic magnet, hard fiber whizzer cone and 1 in. voice coil.
  • Frame:   20-gauge stamped steel with zinc-plated finish.
  • Mounting Bolt Circle:  7.625 in.
  • Transformer:  25V/70V with taps at 0.25, .5, 1, 2, 5W
  • Assembly Frequency Response:  51Hz-11.6kHz (±6dB) and 50Hz- 20kHz (±6.4dB)
  • Assembly Mounting Depth:  2.84 in.
  • Assembly Dispersion Angle:  95 degrees conical
  • Assembly Average Sensitivity:  97.9dB
