810-T870 | SPEAKER-8IN CONE, 10OZ MAGNET, 15W, 8 OHM, 8W 70V XFMR

  • MAP: $94.69 / EA
  • List Price: $107.60 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 16
  • Sign In or Submit RFQ for accurate lead times
SPEAKER-8IN CONE, 10OZ MAGNET, 15W, 8 OHM, 8W 70V XFMR
Click image to enlarge

810-T870
SPEAKER-8IN CONE, 10OZ MAGNET, 15W, 8 OHM, 8W 70V XFMR

  • UM : EA
  • Estimated Weight: 3.0

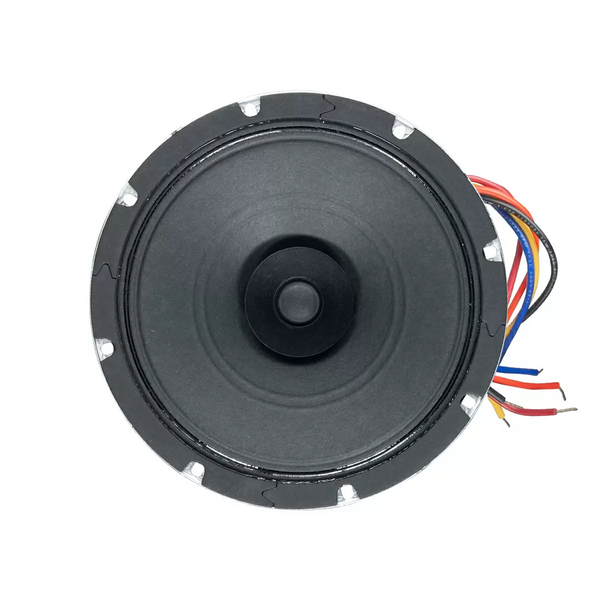

Model 810-T870 is a dual cone 8-inch 15W driver with mounted 70V 8W transformer that provides solid performance for paging and background music. The driver features a 10 oz. ceramic magnet, 3/4-inch hard fiber whizzer cone, 1-inch voice coil and 20-gauge steel frame with zinc-plated finish. Order grille and enclosure separately.

  • Driver:  8 in. 15W dual cone with 10 oz. ceramic magnet, hard fiber whizzer cone and 1 in. voice coil.
  • Frame:  20-gauge steel with zinc-plated finish.
  • Power Rating:  15W
  • Mounting Bolt Circle:  7.625 in. diameter
  • Transformer:  70V with taps at 1, 2, 4, 8W
  • Assembly Frequency Response:  50Hz-11.6kHz (±6dB) and 50Hz- 20kHz (±6.4dB)
  • Assembly Mounting Depth:  3.0 in.
  • Assembly Dispersion Angle:  95 degrees conical
  • Assembly Average Sensitivity:  97.9 dB
