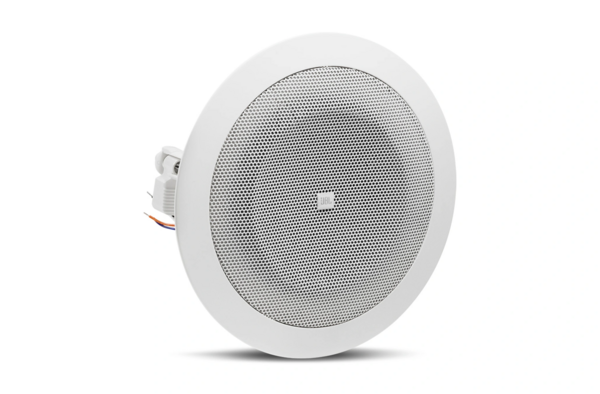

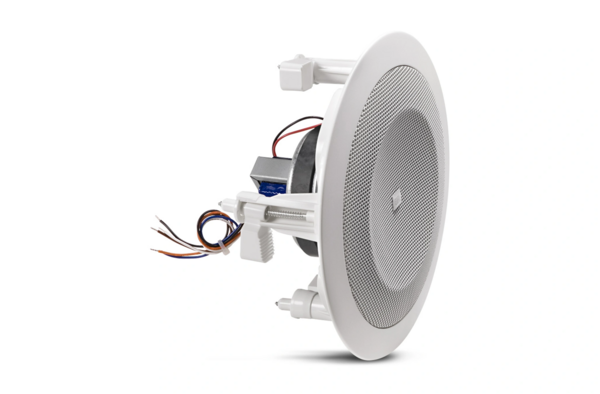

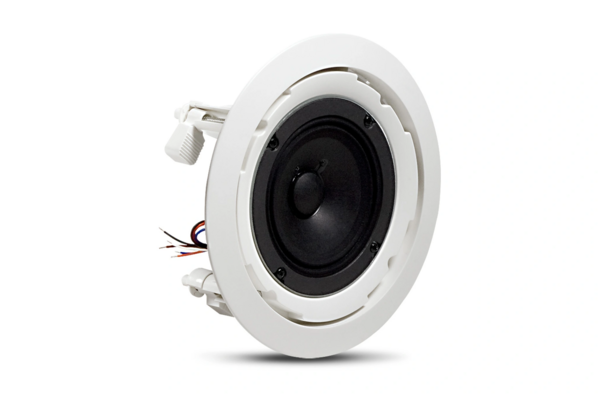

8124 | 4-INCH, FULL-RANGE, IN-CEILING LOUDSPEAKER

  • MAP: $60.00 / EA
  • List Price: $60.00 / EA
  • Log in to see if custom discounts apply
  • Minimum Order Quantity: 4
  • Case Quantity: 4
  • Sign In or Submit RFQ for accurate lead times
4-INCH, FULL-RANGE, IN-CEILING LOUDSPEAKER
4-INCH, FULL-RANGE, IN-CEILING LOUDSPEAKER
4-INCH, FULL-RANGE, IN-CEILING LOUDSPEAKER
Click image to enlarge
4-INCH, FULL-RANGE, IN-CEILING LOUDSPEAKER
4-INCH, FULL-RANGE, IN-CEILING LOUDSPEAKER
4-INCH, FULL-RANGE, IN-CEILING LOUDSPEAKER

8124
4-INCH, FULL-RANGE, IN-CEILING LOUDSPEAKER

  • UM : EA
  • Estimated Weight: 3.0

4-inch full-range in-ceiling loudspeaker. High-fidelity, cost-effective, easy to install. Features high sensitivity drivers for maximum sound with minimal amplifier power. Includes contemporary grill design, 70V/100V taps, and open-back design. Ideal for commercial sound systems without backcan installation.

  • Clear High-Fidelity Performance
  • Dog-ears for easy retrofit installations
  • High Sensitivity (93 dB, 1W, 1m)
  • 6W Transformer for 70V / 100V Distributed Lines
Drivers 4 in, full-range
Frequency Range 60 Hz – 18 kHz
Sensitivity 93 dB (1 kHz – 8 kHz)
Coverage Angle 130° conical
Transformer Taps 6W, 3W, 1.5W (0.75W at 70V only)
Input Connectors Bare wires
Included Accessories Sculpted grille
Optional Accessories MTC-8124C C-ring, MTC rail tile rails
Power Rating See transformer taps
Maximum SPL (1m) 101 dB ave. (top 70V/100V tap)
Color White
Baffle/Rim Plastic
Plenum Usage Not for use in return air plenums
Backcan No
