8138 | 8" FULL-RANGE CEILING SPK FOR BACKCAN, 6W

  • MAP: $85.00 / EA
  • List Price: $85.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 4
  • Sign In or Submit RFQ for accurate lead times

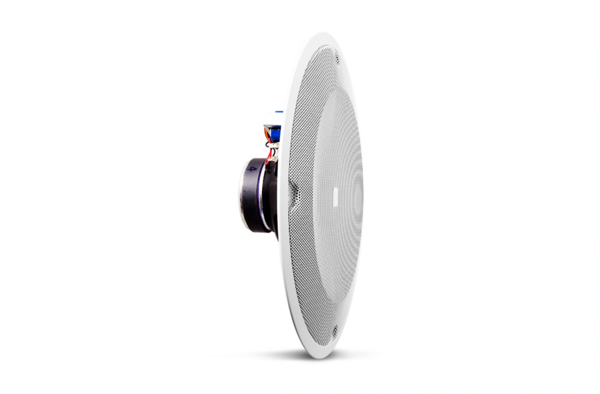

8" FULL-RANGE CEILING SPK FOR BACKCAN, 6W
Click image to enlarge

8138
8" FULL-RANGE CEILING SPK FOR BACKCAN, 6W

  • UM : EA

The 8138 is an 8-inch (200 mm) full-range in-ceiling loudspeaker engineered for integration with pre-install in-ceiling backcans. It is designed to deliver audio performance suitable for commercial environments. The speaker is compatible with standard backcan installations and intended for applications including restaurants, retail spaces, professional offices, and reception areas.

Features:

  • Stylish contemporary appearance
  • Clear sound from 8 inch dual-cone full-range driver
  • High sensitivity of 97 dB
  • 6W transformer for 70V/100V distributed lines
  • Fits in-ceiling backboxes with 4 mounting points on 11.25 inch diameter circle
  • Compatible with MTC-81BB8 backcan and MTC-81TB8 tile bridge
Drivers 200 mm (8 in) full-range, dual-cone
Frequency Range (-10dB) 95 Hz – 18 kHz
Coverage Angle 90° conical
Sensitivity 97 dB (2k - 8k Hz)
Driver Power Capacity 40W (160W peak), 2 hrs; 25W (100W peak), 100 hrs
Transformer Taps 6W, 3W, 1.5W, 0.75W (70V only)
Input Connectors Bare wire
Safety Agency Transformer UL registered per UL1876
Included Accessories Integral baffle, 4 pcs M4 x 40 mm tapping screws
Color White
