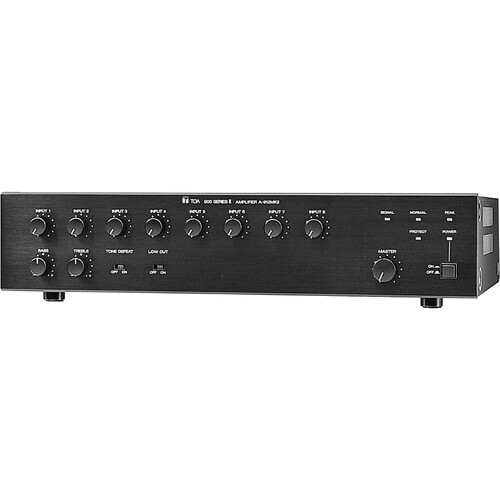

A-912MK2-R | 120W 8-CHANNEL MODULAR MIXER/AMPLIFIER WITH RACKMOUNT KIT

A-912MK2-R
120W 8-CHANNEL MODULAR MIXER/AMPLIFIER WITH RACKMOUNT KIT

From the TOA 900 series of mixer/amplifiers, the A-912MK2 is a customizable unit ideal for background music, paging, on-hold messages, and other applications in hospitals, airports, schools, and other similar venues. The A-912MK2 is designed for high performance with a low self-noise, a wide frequency response, and excellent output regulation. This 120W unit features 8 input channels that accept any combination of TOA's plug-in modules for ultimate customizability. The front panel features a master volume control and individual channel volume controls as well as bass and treble controls.

Input capacity may be increased by connecting another mixer or mixer/amplifier to the bridge in/out jack. The unit features transformer-isolated outputs, and a direct output mode if non-transformer operation is desired.

Modular Input Design

Eight expansion input slots house modules that provide line or microphone level connections.

25 and 70 Volt Operation

The mixer/amplifier is capable of 70V operation, suitable for long speaker runs throughout offices, airports, hospitals, restaurants, etc.

Paging Priority Modes

A Dual Mute Bus permits multiple levels of paging priority, using optional mute-type modules.

External Mute Terminals

Accommodate external mute switchers for remote mute operation.

Remote Master Volume Terminals

Enable remote master volume control.

Low-Cut Filter

A master low-cut filter switch eliminates low-frequency noise and rumble.

Auxiliary Output

The auxiliary output accommodates an external recording device, mixer, and more.

Insert Jacks

Insert jacks accommodate outboard signal processing.

Delayed Power Up

A power up delay feature protects the outputs and connected speakers from damage caused by surges during abrupt amplifier power up.
