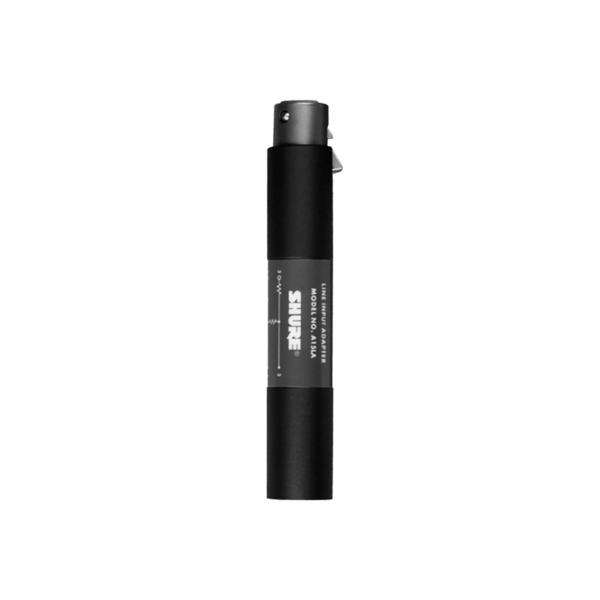

A15LA | LINE ADAPTER–CONVERTS BALANCED LINE LEVEL SIGNALS TO MICROPHONE LEVEL (50DB ATTENUATION)

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 12
  • In Stock
LINE ADAPTER–CONVERTS BALANCED LINE LEVEL SIGNALS TO MICROPHONE LEVEL (50DB ATTENUATION)
Click image to enlarge

A15LA
LINE ADAPTER–CONVERTS BALANCED LINE LEVEL SIGNALS TO MICROPHONE LEVEL (50DB ATTENUATION)

  • UM : EA
  • Estimated Weight: 1.9

The A15LA is a 50 dB attenuator. Use it to connect a line-level or aux-level output from devices such as mixers, tape recorders, and CD players to a mic-level input.

Frequency Response

20 to 20,000 Hz±0.5 dB

Impedance

Input: 100 kO, Output:300 O

Attenuation

50 dB

Maximum Input Level

40 dBV

Connectors

Input: 3-socket female XLR, Output:3-pin male XLR

Housing

Full magnetic shield, steel with gray enamel finish

Dimensions

19 mm (.75in.)diameter; 114 mm (4.5in.) long
