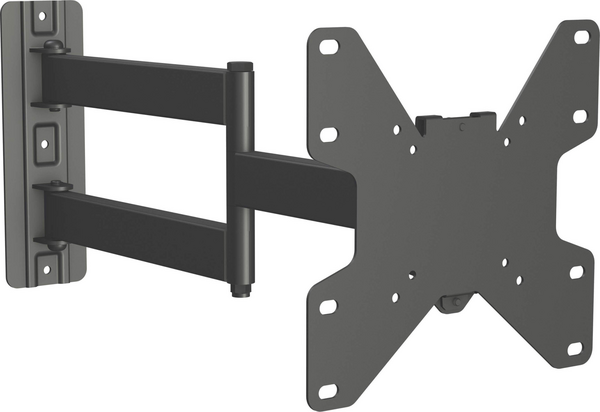

A42M | ARTICULATING MOUNT FOR 13" TO 49" FLAT PANEL DISPLAYS

  • MAP: $81.59 / EA
  • List Price: $101.99 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 8
  • Sign In or Submit RFQ for accurate lead times
ARTICULATING MOUNT FOR 13" TO 49" FLAT PANEL DISPLAYS
Click image to enlarge

A42M
ARTICULATING MOUNT FOR 13" TO 49" FLAT PANEL DISPLAYS

  • UM : EA

Articulating mount for 13” to 49” displays. Multiple joint arm holds display 1.9” from wall when retracted and 21” when fully extended. Smooth tilt adjustments of +10° (forward) and -2° (back) and 3° side-to-side roll facilitates a variety of viewing angles and perfect positioning. Three attachment points for wood studs and concrete walls provide additional security. Optional cable management for clean look.

Features:

  • Constructed from High Grade Cold Rolled Steel
  • VESA compatible 75x75mm, 100x100mm, 200x100mm, 200x200mm
  • Optional AD400 extends compatibility up to 400x400mm (Not included)
  • Multiple attachment points for different mounting surfaces offers additional safety
  • +/- 3° of roll
  • Smooth variable tilt from 10° forward to 2° back
  • ADA Compliant for displays with depth of 2” or less
Display Size Range 13"-49"
Weigth Capacity 80 lbs.
Max Mounting Pattern 200x200
VESA mounting patterns 75x75mm, 100x100mm, 200x100mm, 200x200mm
Depth from wall 1.9” (46.26mm)
Max extension 21” (533mm)
Tilt +10°/-2°
Pivot 180°
Roll (side to side) 3°
Mounting surface wood stud, concrete or cinder block
Stud spacing single stud
Construction high-grade cold rolled steel
Product finish scratch resistant epoxy powder coat
Product weight 9lb (4.1kg)
Package specifications 14”x12”x5”
Color black
Warranty Limited lifetime
