A70F | ARTICULATING MOUNT FOR 37" TO 70" DISPLAYS

  • MAP: $303.59 / EA
  • List Price: $379.19 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 3
  • Sign In or Submit RFQ for accurate lead times

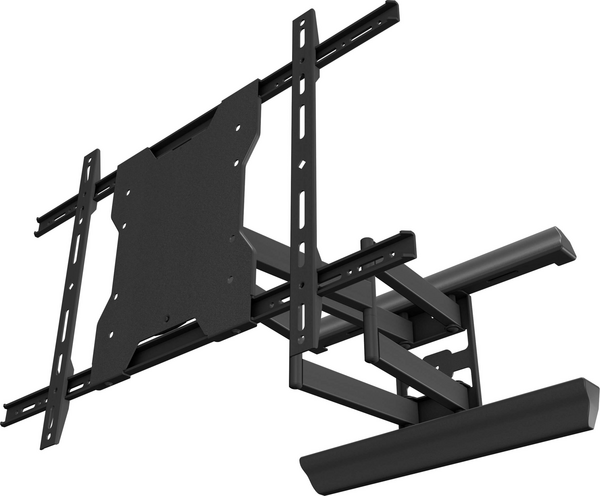

ARTICULATING MOUNT FOR 37" TO 70" DISPLAYS
Click image to enlarge

A70F
ARTICULATING MOUNT FOR 37" TO 70" DISPLAYS

  • UM : EA
  • Estimated Weight: 23.0

Multiple joint arms hold screen 2.5” from wall when retracted and 21.04” when fully extended. Smooth tilt adjustments of +15° (forward) and -5° (back) with a locking knob and 3° side-to-side roll facilitates a variety of viewing angles and perfect screen positioning. Makes a secure installation quick and easy, simply hang the screen and turn the pre-assembled securing screws to lock in place. Integrated cable management for clean look.

Features:

  • Universal design
  • VESA compatible
  • Pre-tensioned tilt mechanism for smooth adjustment
  • Post installation screen leveling without use of tools
  • Integrated cable management for clean look
  • Pre-sorted hardware pack for easy installation to wood studs or concrete surfaces included
TV size range 37” – 70”
Weight capacity 130lb (59kg)
Max mounting pattern 600x400mm
VESA mounting patterns 75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm
Depth from wall 2.5” (63.5mm)
Max extension 21.04” (534mm)
Tilt +15°/-5°
Lateral adjustment 10” (254mm)
Pivot 54°
Roll (side to side) 3°
Mounting surface wood stud, concrete or cinder block
Stud spacing dual stud 16” on center
Construction aluminum/high-grade cold rolled steel
Product finish scratch resistant epoxy powder coat
Product weight 21.8lb (9.9kg)
Package specifications 33”x15”x6”
Color black
Warranty Limited Lifetime
