A86F | ARTICULATING ARM FOR 86" LG STRETCH DISPLAY IN LANDSCAPE ORIENTATION

  • MAP: $399.59 / EA
  • List Price: $499.19 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
ARTICULATING ARM FOR 86" LG STRETCH DISPLAY IN LANDSCAPE ORIENTATION
ARTICULATING ARM FOR 86" LG STRETCH DISPLAY IN LANDSCAPE ORIENTATION
ARTICULATING ARM FOR 86" LG STRETCH DISPLAY IN LANDSCAPE ORIENTATION
Click image to enlarge
ARTICULATING ARM FOR 86" LG STRETCH DISPLAY IN LANDSCAPE ORIENTATION
ARTICULATING ARM FOR 86" LG STRETCH DISPLAY IN LANDSCAPE ORIENTATION
ARTICULATING ARM FOR 86" LG STRETCH DISPLAY IN LANDSCAPE ORIENTATION

A86F
ARTICULATING ARM FOR 86" LG STRETCH DISPLAY IN LANDSCAPE ORIENTATION

  • UM : EA
  • Estimated Weight: 24.3

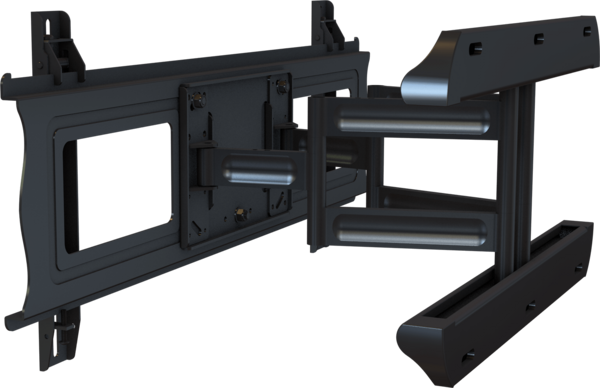

Designed for the LG ultra stretch display (86BH5C) in landscape orientation, multiple joint arms hold screen 2.88” from wall when retracted and 14.66” when fully extended. Smooth tilt adjustment of -6.5° (back) with a locking knob and 41° of pivot facilitates a variety of viewing angles and perfect screen positioning.

Features:

  • Universal design
  • VESA compatible
  • Lateral shift allows for perfect placement
  • Pre-tensioned tilt mechanism for smooth adjustment
  • Post installation screen leveling without use of tools
  • Integrated cable management for clean look
  • Pre-sorted hardware pack for easy installation to wood studs or concrete surfaces included
TV size range 37” – 90”
Weight capacity 130lb (59kg)
Max mounting pattern 711x223mm
Depth from wall 2.88” (73.15mm)
Max extension 14.66” (370mm)
Side-to-side roll 3°
Tilt -6.5°
Pivot 41°
Mounting surface wood stud, concrete or cinder block
Stud spacing dual stud 16” on center
Construction aluminum/high-grade cold rolled steel
Product finish scratch resistant epoxy powder coat
Product weight 21.03lb (9.9kg)
Color black
Warranty 10-years
